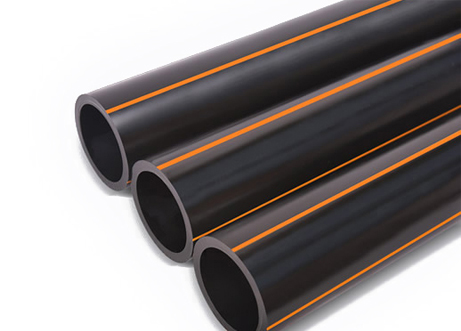

Henan LuKuang Trading’s HDPE fire protection pipe (FM approved) complies with ISO 4427, AS/NZS 4130, BS EN 12201, and SABS standards, and is certified by CE, ISO 9001, and FM. Made from high-quality PE100 raw material with a complete range of fittings, it is designed for municipal fire protection systems, ensuring reliable and stable performance. For more information, please contact us.
WhatsApp: 8615515833787 WeChat: 15515833787Size Range: DN20–1200mm (customizable; standard range can cover DN16–1600mm)
Pressure Rating: SDR 41–PN4, SDR 33–PN5, SDR 26–PN6, SDR 21–PN8, SDR 17–PN10, SDR 13.6–PN12.5, SDR 11–PN16, SDR 9–PN20, SDR 7.4–PN25, SDR 6–PN32
Service Life: Up to 70 years under normal use, and over 70 years when buried underground
Raw Materials: PE80, PE100, PE4710, PE100RC (high-quality virgin materials ensuring stable performance)
Certifications: FM Approved, ISO 14001, ISO 9001, OHSAS 18001, CE, BS EN 12201, WRAS
Color Options: Black, blue, or black with blue stripes, meeting fire protection identification requirements
HDPE municipal fire protection pipe is a specialized pipeline made from high-density polyethylene (HDPE), designed for municipal fire protection systems. It is used to connect firefighting equipment and transport fire water, gases, and other fire suppression media.
Manufactured in strict compliance with international standards, it is made from premium raw materials and advanced production technology. The pipe offers excellent corrosion resistance, anti-aging performance, and high pressure resistance, making it an ideal solution for municipal fire protection systems and a reliable foundation for urban fire safety infrastructure.
Emergency Fire Water Supply:Specifically designed for municipal fire protection systems, ensuring stable and efficient delivery of fire water and related media in emergency situations, providing reliable support for firefighting and rescue operations.
System Compatibility & Integration:Equipped with a complete range of HDPE fittings, it seamlessly connects with various firefighting equipment, meeting the overall construction, operation, and maintenance needs of municipal fire systems.
Adaptability to Complex Environments: Suitable for underground conditions and various climates, with strong resistance to uneven ground settlement, ensuring reliable performance even under extreme working conditions.
|
Product Name |
HDPE Pipes for Fire Fighting (FM Certified) |
|
Brand |
HENAN LUKUANG TRADE |
|
Raw Materials |
PE80, PE100, PE4710, PE100RC |
|
Color Options |
Black, Blue, Black with Blue Stripes |
|
Executive Standards |
ISO4427/ISO9001/AS/NZS 4130/BS EN 12201/SABS Standards |
|
Customization Service |
Support custom special specifications, can print customer logos, and accept relevant customization needs |
|
Sample Supply |
Free samples available |
|
Packaging Standard |

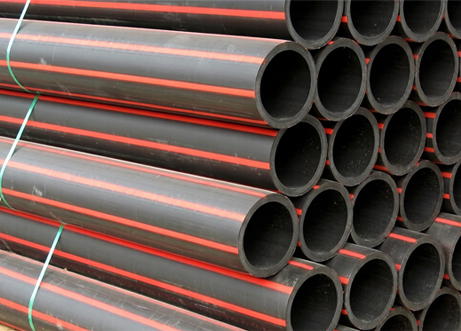

International standard packaging; diameter <110mm in coils, diameter >110mm in single lengths (5.8 meters or 11.8 meters) |
|
Minimum Order Quantity |
Negotiable |
|
Production Cycle |
Depends on order quantity; 20ft container: 7-10 days; 40ft container: 15-20 days |
|
Certifications |
FM Certification, ISO 14001, ISO 9001, OHSAS 18001, CE, BS EN 12201, WRAS Certifications |
|
Warranty Period |
30-year warranty under normal use |
|
Payment Terms |
Telegraphic Transfer (T/T) or Letter of Credit (L/C) at Sight |
|
FOB Port |
Chongqing, Qingdao, Tianjin, Shanghai, etc. |
|
Country of Origin |
China |
We offer HDPE pipes with diameters ranging from DN20mm to 1800mm.
| SDR41 PN4 | SDR33 PN5 | SDR26 PN6 | SDR21 PN8 | SDR17 PN10 | SDR13.6 PN12.5 | SDR11 PN16 | SDR9 PN20 | SDR7.4 PN25 | SDR6 PN32 | |||||||||||
| DN (mm) | W.T. (mm) | G.W. (kg/m) | W.T. (mm) | G.W. (kg/m) | W.T. (mm) | G.W. (kg/m) | W.T. (mm) | G.W. (kg/m) | W.T. (mm) | G.W. (kg/m) | W.T. (mm) | G.W. (kg/m) | W.T. (mm) | G.W. (kg/m) | W.T. (mm) | G.W. (kg/m) | W.T. (mm) | G.W. (kg/m) | W.T. (mm) | G.W. (kg/m) |
| 16 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 3 | 0.12 |
| 20 | - | - | - | - | - | - | 1 | 0.06 | 1.2 | 0.07 | 1.5 | 0.09 | 2 | 0.11 | 2.3 | 0.13 | 3 | 0.16 | 3.4 | 0.18 |
| 25 | - | - | - | - | - | - | 1.2 | 0.09 | 1.5 | 0.12 | 2 | 0.15 | 2.3 | 0.16 | 3 | 0.21 | 3.5 | 0.24 | 4.2 | 0.28 |
| 32 | - | - | - | - | - | - | 1.5 | 0.15 | 2 | 0.19 | 2.4 | 0.24 | 3 | 0.27 | 3.6 | 0.32 | 4.4 | 0.38 | 5.4 | 0.45 |
| 40 | - | - | - | - | - | - | 2 | 0.26 | 2.4 | 0.29 | 3 | 0.36 | 3.7 | 0.42 | 4.5 | 0.5 | 5.5 | 0.6 | 6.7 | 0.7 |
| 50 | - | - | - | - | 1.8 | 0.29 | 2.4 | 0.36 | 3 | 0.45 | 3.7 | 0.54 | 4.6 | 0.66 | 5.6 | 0.78 | 6.9 | 0.93 | 8.3 | 1.08 |
| 63 | 1.8 | 0.36 | 2 | 0.39 | 2.4 | 0.47 | 3 | 0.57 | 3.8 | 0.71 | 4.7 | 0.87 | 5.8 | 1.04 | 7.1 | 1.25 | 8.6 | 1.46 | 10.3 | 1.69 |
| 75 | 1.9 | 0.45 | 2.3 | 0.54 | 2.7 | 0.63 | 3.6 | 0.81 | 4.5 | 1.01 | 5.6 | 1.23 | 6.8 | 1.46 | 8.4 | 1.75 | 10.3 | 2.08 | 12.5 | 2.43 |
| 90 | 2.3 | 0.64 | 2.8 | 0.78 | 3.3 | 0.93 | 4.3 | 1.16 | 5.4 | 1.45 | 6.7 | 1.76 | 8.2 | 2.11 | 10.1 | 2.53 | 12.3 | 2.99 | 15 | 3.51 |
| 110 | 2.7 | 0.93 | 3.4 | 1.16 | 4 | 1.37 | 5.3 | 1.74 | 6.6 | 2.15 | 8.1 | 2.6 | 10 | 3.13 | 12.3 | 3.76 | 15.1 | 4.47 | 18.3 | 5.22 |
| 125 | 3.1 | 1.22 | 3.9 | 1.5 | 4.5 | 1.74 | 6 | 2.25 | 7.4 | 2.74 | 9.2 | 3.35 | 11.4 | 4.06 | 14 | 4.87 | 17.1 | 5.76 | 20.8 | 6.74 |
| 140 | 3.5 | 1.52 | 4.3 | 1.86 | 5.1 | 2.21 | 6.7 | 2.81 | 8.3 | 3.44 | 10.3 | 4.2 | 12.7 | 5.06 | 15.7 | 6.09 | 19.2 | 7.23 | 23.3 | 8.45 |
| 160 | 4 | 1.97 | 4.9 | 2.4 | 5.8 | 2.87 | 7.7 | 3.69 | 9.5 | 4.5 | 11.8 | 5.48 | 14.6 | 6.64 | 17.9 | 7.94 | 21.9 | 9.42 | 26.6 | 11.03 |
| 180 | 4.4 | 2.46 | 5.5 | 3.04 | 6.5 | 3.61 | 8.6 | 4.64 | 10.7 | 5.69 | 13.3 | 6.96 | 16.4 | 8.4 | 20.1 | 10.04 | 24.6 | 11.91 | 29.9 | 13.94 |
| 200 | 4.9 | 3.02 | 6.2 | 3.81 | 7.2 | 4.44 | 9.6 | 5.75 | 11.9 | 7.02 | 14.7 | 8.53 | 18.2 | 10.36 | 22.4 | 12.42 | 27.4 | 14.73 | 33.2 | 17.21 |
| 225 | 5.5 | 3.82 | 6.9 | 4.74 | 8.1 | 5.68 | 10.8 | 7.26 | 13.4 | 8.9 | 16.6 | 10.83 | 20.3 | 13 | 25.2 | 15.72 | 30.8 | 18.61 | 37.4 | 21.79 |
| 250 | 6.2 | 4.79 | 7.7 | 5.88 | 9.1 | 6.99 | 11.9 | 8.89 | 14.8 | 10.91 | 18.4 | 13.34 | 22.7 | 16.12 | 27.9 | 19.32 | 34.2 | 22.98 | 41.5 | 26.87 |
| 280 | 6.9 | 5.94 | 8.6 | 7.35 | 10.1 | 8.71 | 13.4 | 11.18 | 16.6 | 13.7 | 20.6 | 16.72 | 25.4 | 20.21 | 31.3 | 24.28 | 38.3 | 28.82 | 46.5 | 33.71 |
| 315 | 7.7 | 7.46 | 9.7 | 9.32 | 11.4 | 11.02 | 15 | 14.1 | 18.7 | 17.35 | 23.2 | 21.19 | 28.6 | 25.58 | 35.2 | 30.72 | 43.1 | 36.48 | 52.3 | 42.66 |
| 355 | 8.7 | 9.49 | 10.9 | 11.78 | 12.9 | 14.05 | 16.9 | 17.86 | 21.1 | 22.09 | 26.1 | 26.87 | 32.2 | 32.47 | 39.7 | 39.01 | 48.5 | 46.25 | 59 | 54.19 |
| 400 | 9.8 | 12.03 | 12.3 | 15.01 | 14.5 | 17.83 | 19.1 | 22.72 | 23.7 | 27.91 | 29.4 | 34.07 | 36.3 | 41.23 | 44.7 | 49.49 | 54.7 | 58.75 | 66.7 | 68.95 |
| 450 | 11 | 15.17 | 13.8 | 18.9 | 16.3 | 22.52 | 21.5 | 28.81 | 26.7 | 35.36 | 33.1 | 43.16 | 40.9 | 52.21 | 50.3 | 62.66 | 61.5 | 74.32 | - | - |
| 500 | 12.3 | 18.89 | 15.3 | 23.31 | 18.1 | 27.74 | 23.9 | 35.56 | 29.7 | 43.7 | 36.8 | 53.25 | 45.4 | 64.42 | 55.8 | 77.22 | 67.7 | 97.19 | - | - |
| 560 | 13.7 | 23.52 | 17.2 | 29.34 | 20.3 | 34.84 | 26.7 | 44.51 | 33.2 | 54.74 | 41.2 | 66.81 | 50.8 | 80.7 | 62.2 | 96.43 | 75.7 | 121.9 | - | - |
| 630 | 15.4 | 29.75 | 19.3 | 37.01 | 22.8 | 43.99 | 30 | 56.24 | 37.4 | 69.33 | 46.3 | 84.75 | 57.2 | 102.25 | 70.3 | 125.86 | 85.1 | 154.82 | - | - |
| 710 | 17.4 | 37.86 | 21.8 | 47.04 | 25.7 | 55.89 | 33.9 | 71.52 | 42.1 | 87.97 | 52.2 | 107.28 | 64.5 | 129.97 | 79.3 | 161.88 | 95.9 | 195.82 | - | - |
| 800 | 19.6 | 48.01 | 24.5 | 59.58 | 29 | 71.11 | 38.1 | 90.58 | 47.4 | 111.55 | 58.8 | 136.09 | 72.6 | 175.59 | 89.3 | 210.68 | - | - | - | - |
| 900 | 22 | 60.55 | 27.6 | 75.47 | 32.6 | 89.82 | 42.9 | 114.77 | 53.3 | 141.11 | 66.2 | 172.29 | 81.7 | 222.3 | - | - | - | - | - | - |
| 1000 | 24.5 | 74.98 | 30.6 | 92.96 | 36.2 | 110.84 | 47.7 | 141.83 | 59.3 | 174.39 | 73.5 | 212.64 | 90.2 | 272.87 | - | - | - | - | - | - |
| 1200 | 29.4 | 107.97 | 36.7 | 133.73 | 43.5 | 159.84 | 57.2 | 203.39 | 70.6 | 248.56 | 88.2 | 326.06 | - | - | - | - | - | - | - | - |
| 1400 | 34.3 | 146.87 | 42.9 | 182.28 | 50.7 | 217.01 | 66.7 | 276.21 | 82.4 | 337.82 | 102.9 | 443.8 | - | - | - | - | - | - | - | - |
| 1600 | 39.2 | 191.8 | 49 | 237.89 | 58 | 283.79 | 76.2 | 360.37 | 94.1 | 440.55 | - | - | - | - | - | - | - | - | - | - |
Note: Special specifications can be customized.
Please send your inquiries to the following email address:sales@mfgpipe.com;whatsapp:+86 15515833787 (We will respond to you within 24 hours).
Eco-Friendly & Safe: Non-toxic and recyclable, free from scaling, helping maintain clean water quality and meeting green building standards.
Strong Corrosion Resistance:Resists chemicals, soil, and moisture without extra protection, ensuring long-term stable performance.
Leak-Free Connection: Heat fusion joints create strong, seamless connections with zero leakage risk.
High Toughness & Flexibility: Over 500% elongation, excellent impact and seismic resistance, adapting to ground movement.
Crack Resistance:High resistance to rapid crack propagation, ensuring long-term pipeline integrity.
High Pressure Performance: Designed for municipal fire systems, ensuring stable emergency water supply under high pressure.
Long Service Life:Excellent anti-aging performance with a buried service life of over 70 years.
Easy Installation:Supports trenchless construction, with smooth inner walls for high flow efficiency and easy installation.
Complete System & Low Maintenance:Full range of fittings available, reducing installation time and long-term maintenance costs.

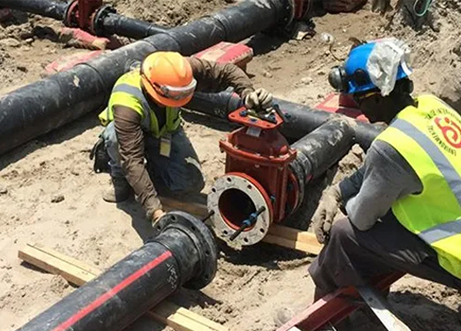

Municipal Fire Networks: Fire hydrants, pump stations, main pipelines.
Industrial Parks: Fire water supply systems for factories and industrial zones.
Urban Construction: New residential areas, road projects, and urban renewal.
Public Buildings: Commercial centers, parks, and large facilities.
