HDPE ventilation pipes

Henan LuKuang Trading HDPE ventilation pipe complies with ISO 4427, AS/NZS 4130, BS EN 12201, and SABS international standards, and is certified by CE, ISO 9001, ISO 14001, OHSAS 18001, and WRAS, with a complete range of fittings available. Made from high-quality PE80, PE100, and PE4710 virgin materials, it is specially designed for air transportation and HVAC ventilation systems in construction projects and tunnel engineering. With advantages of safety, durability, corrosion resistance, and easy installation, it is an ideal solution for various ventilation applications. For more details, please feel free to contact us.

WhatsApp: 8615515833787 WeChat: 15515833787
Send Email Get A Quote

Core Parameters

  • Size Range: DN16–1600mm (customizable, covering building and tunnel ventilation needs, commonly 20–1200mm)


    Pressure Rating: SDR 41–PN4 to SDR 6–PN32, suitable for various ventilation pressure requirements


    Service Life: Up to 70 years, ideal for long-term building and tunnel projects with reduced maintenance costs


    Raw Materials: PE80, PE100, PE4710 high-quality virgin materials, ensuring stable performance in complex ventilation environments


    Certifications: ISO 14001, ISO 9001, OHSAS 18001, CE, BS EN 12201, WRAS, ensuring reliable quality compliance


    Color Options: Black, blue, or black with blue stripes for easy on-site identification and application differentiation

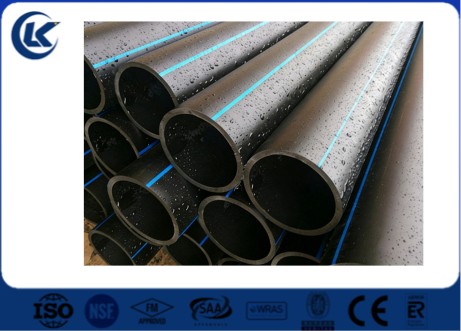

          4

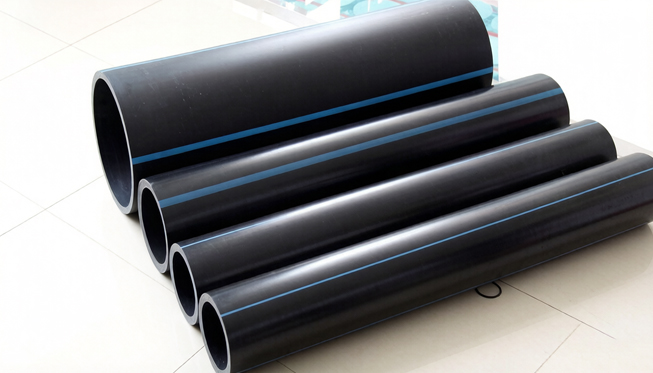

  • Henan LuKuang Trading HDPE ventilation pipe is made from high-density polyethylene (HDPE) material and is specially designed for air transportation and HVAC ventilation systems in building and tunnel engineering, providing efficient, safe, and stable ventilation solutions. It is manufactured from high-quality PE80, PE100, and PE4710 virgin materials in strict compliance with ISO 4427, AS/NZS 4130, BS EN 12201, and SABS international standards. The pipe offers excellent chemical stability, resistance to high and low temperatures, anti-aging performance, and good flexibility, ensuring long-term reliable operation in complex environments.

    This pipe is widely used in building and tunnel ventilation systems, and can be flexibly applied in air conditioning ducts, air circulation, noise reduction, and dust removal systems. It is especially suitable for clean workshops and other high-standard environments, effectively improving air quality and system efficiency, making it an ideal solution for modern ventilation projects.

    3
  • 2

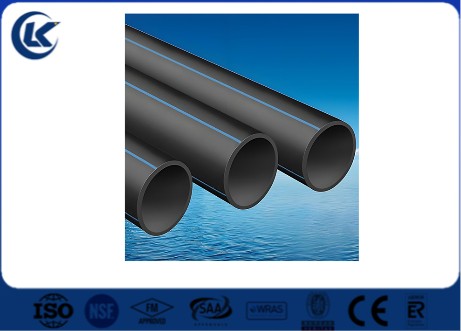

  • 5
  • 7



Core Product Features



HVAC System Compatibility: Can be used as air conditioning ducts with excellent noise reduction and dust control performance, helping to improve air quality. It is especially suitable for clean rooms, laboratories, and other high-standard environments.



Optimized Air Circulation: Promotes efficient indoor and outdoor air exchange, ensuring stable fresh air circulation and distribution, significantly improving comfort and environmental quality.



Harmful Gas Removal: Effectively exhausts indoor harmful gases, reduces pollutant accumulation, continuously improves air quality, and ensures a safer and healthier environment.

Product Basic Information Table

Product Name

HDPE Ventilation Pipe

Henan Lukuang Trade

Henan Lukuang Trade Pipe

Raw Materials

PE80, PE100, PE4710

Color Options

Black, Blue, Black with Blue Stripes

Executive Standards

ISO4427/ISO9001/AS/NZS 4130/BS EN 12201/SABS Standards

Customization Service

Support custom special specifications, can print customer logos, and accept relevant customization needs

Sample Supply

Samples available, supporting sample testing

Packaging Standard

International standard packaging; diameter <110mm in coils, diameter >110mm in single lengths (5.8 meters or 11.8 meters)

Minimum Order Quantity

Negotiable

Production Cycle

Depends on order quantity; 20ft container: 7-10 days; 40ft container: 15-20 days

Certifications

ISO 14001, ISO 9001, OHSAS 18001, CE, BS EN 12201, WRAS Certifications

Warranty Period

30-year warranty under normal use

Payment Terms

Telegraphic Transfer (T/T) or Letter of Credit (L/C) at Sight

FOB Port

Chongqing, Qingdao, Tianjin, Shanghai, etc.

Country of Origin

China

Customer Log

Customer log available

Supplementary Common Sizes

20-1200mm (covering common ventilation scenario sizes)

Core Applications

Air transportation and air conditioning systems in construction engineering and tunnel construction

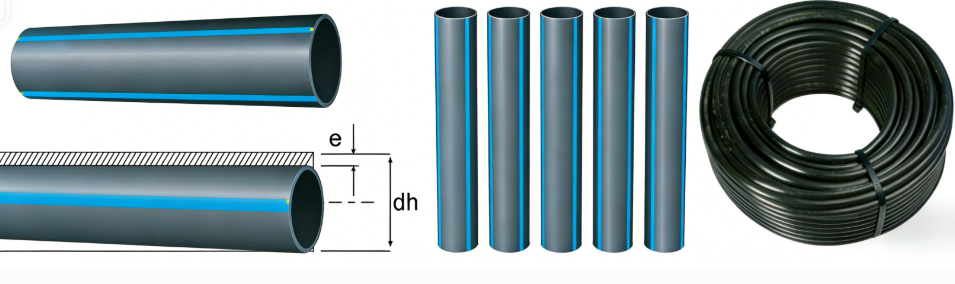

HDPE Pipe Specification Parameter Comparison Table

We offer HDPE pipes with diameters ranging from DN20mm to 1800mm.

7

SDR41 PN4 SDR33 PN5 SDR26 PN6 SDR21 PN8 SDR17 PN10 SDR13.6 PN12.5 SDR11 PN16 SDR9 PN20 SDR7.4 PN25 SDR6 PN32
DN (mm) W.T. (mm) G.W. (kg/m) W.T. (mm) G.W. (kg/m) W.T. (mm) G.W. (kg/m) W.T. (mm) G.W. (kg/m) W.T. (mm) G.W. (kg/m) W.T. (mm) G.W. (kg/m) W.T. (mm) G.W. (kg/m) W.T. (mm) G.W. (kg/m) W.T. (mm) G.W. (kg/m) W.T. (mm) G.W. (kg/m)
16 - - - - - - - - - - - - - - - - - - 3 0.12
20 - - - - - - 1 0.06 1.2 0.07 1.5 0.09 2 0.11 2.3 0.13 3 0.16 3.4 0.18
25 - - - - - - 1.2 0.09 1.5 0.12 2 0.15 2.3 0.16 3 0.21 3.5 0.24 4.2 0.28
32 - - - - - - 1.5 0.15 2 0.19 2.4 0.24 3 0.27 3.6 0.32 4.4 0.38 5.4 0.45
40 - - - - - - 2 0.26 2.4 0.29 3 0.36 3.7 0.42 4.5 0.5 5.5 0.6 6.7 0.7
50 - - - - 1.8 0.29 2.4 0.36 3 0.45 3.7 0.54 4.6 0.66 5.6 0.78 6.9 0.93 8.3 1.08
63 1.8 0.36 2 0.39 2.4 0.47 3 0.57 3.8 0.71 4.7 0.87 5.8 1.04 7.1 1.25 8.6 1.46 10.3 1.69
75 1.9 0.45 2.3 0.54 2.7 0.63 3.6 0.81 4.5 1.01 5.6 1.23 6.8 1.46 8.4 1.75 10.3 2.08 12.5 2.43
90 2.3 0.64 2.8 0.78 3.3 0.93 4.3 1.16 5.4 1.45 6.7 1.76 8.2 2.11 10.1 2.53 12.3 2.99 15 3.51
110 2.7 0.93 3.4 1.16 4 1.37 5.3 1.74 6.6 2.15 8.1 2.6 10 3.13 12.3 3.76 15.1 4.47 18.3 5.22
125 3.1 1.22 3.9 1.5 4.5 1.74 6 2.25 7.4 2.74 9.2 3.35 11.4 4.06 14 4.87 17.1 5.76 20.8 6.74
140 3.5 1.52 4.3 1.86 5.1 2.21 6.7 2.81 8.3 3.44 10.3 4.2 12.7 5.06 15.7 6.09 19.2 7.23 23.3 8.45
160 4 1.97 4.9 2.4 5.8 2.87 7.7 3.69 9.5 4.5 11.8 5.48 14.6 6.64 17.9 7.94 21.9 9.42 26.6 11.03
180 4.4 2.46 5.5 3.04 6.5 3.61 8.6 4.64 10.7 5.69 13.3 6.96 16.4 8.4 20.1 10.04 24.6 11.91 29.9 13.94
200 4.9 3.02 6.2 3.81 7.2 4.44 9.6 5.75 11.9 7.02 14.7 8.53 18.2 10.36 22.4 12.42 27.4 14.73 33.2 17.21
225 5.5 3.82 6.9 4.74 8.1 5.68 10.8 7.26 13.4 8.9 16.6 10.83 20.3 13 25.2 15.72 30.8 18.61 37.4 21.79
250 6.2 4.79 7.7 5.88 9.1 6.99 11.9 8.89 14.8 10.91 18.4 13.34 22.7 16.12 27.9 19.32 34.2 22.98 41.5 26.87
280 6.9 5.94 8.6 7.35 10.1 8.71 13.4 11.18 16.6 13.7 20.6 16.72 25.4 20.21 31.3 24.28 38.3 28.82 46.5 33.71
315 7.7 7.46 9.7 9.32 11.4 11.02 15 14.1 18.7 17.35 23.2 21.19 28.6 25.58 35.2 30.72 43.1 36.48 52.3 42.66
355 8.7 9.49 10.9 11.78 12.9 14.05 16.9 17.86 21.1 22.09 26.1 26.87 32.2 32.47 39.7 39.01 48.5 46.25 59 54.19
400 9.8 12.03 12.3 15.01 14.5 17.83 19.1 22.72 23.7 27.91 29.4 34.07 36.3 41.23 44.7 49.49 54.7 58.75 66.7 68.95
450 11 15.17 13.8 18.9 16.3 22.52 21.5 28.81 26.7 35.36 33.1 43.16 40.9 52.21 50.3 62.66 61.5 74.32 - -
500 12.3 18.89 15.3 23.31 18.1 27.74 23.9 35.56 29.7 43.7 36.8 53.25 45.4 64.42 55.8 77.22 67.7 97.19 - -
560 13.7 23.52 17.2 29.34 20.3 34.84 26.7 44.51 33.2 54.74 41.2 66.81 50.8 80.7 62.2 96.43 75.7 121.9 - -
630 15.4 29.75 19.3 37.01 22.8 43.99 30 56.24 37.4 69.33 46.3 84.75 57.2 102.25 70.3 125.86 85.1 154.82 - -
710 17.4 37.86 21.8 47.04 25.7 55.89 33.9 71.52 42.1 87.97 52.2 107.28 64.5 129.97 79.3 161.88 95.9 195.82 - -
800 19.6 48.01 24.5 59.58 29 71.11 38.1 90.58 47.4 111.55 58.8 136.09 72.6 175.59 89.3 210.68 - - - -
900 22 60.55 27.6 75.47 32.6 89.82 42.9 114.77 53.3 141.11 66.2 172.29 81.7 222.3 - - - - - -
1000 24.5 74.98 30.6 92.96 36.2 110.84 47.7 141.83 59.3 174.39 73.5 212.64 90.2 272.87 - - - - - -
1200 29.4 107.97 36.7 133.73 43.5 159.84 57.2 203.39 70.6 248.56 88.2 326.06 - - - - - - - -
1400 34.3 146.87 42.9 182.28 50.7 217.01 66.7 276.21 82.4 337.82 102.9 443.8 - - - - - - - -
1600 39.2 191.8 49 237.89 58 283.79 76.2 360.37 94.1 440.55 - - - - - - - - - -

Note: Special specifications are available upon request. Please contact us for further product information and pricing.

Please send your inquiries to the following email address:sales@mfgpipe.com;whatsapp:+86 15515833787 (We will respond to you within 24 hours).

Core Advantages



Fast and Easy Installation: Simple connection system significantly reduces installation time and labor costs.



No Painting Required: Smooth and clean surface eliminates the need for extra coating, ensuring a neat finish.



Lightweight & Easy Handling: Easy to transport and install without heavy equipment, ideal for ceiling and confined spaces.



Space-Saving Design: Smaller diameter with high efficiency, easy to embed in walls and ceilings.



Strong Corrosion Resistance: Resistant to various chemical media without extra anti-corrosion treatment.



Flexible & Stable: Excellent flexibility and seismic resistance, suitable for complex terrains.



Excellent Sealing Performance: Tight connections with no leakage, adaptable to slight movement for stable operation.



UV Resistant & Weatherproof: Suitable for outdoor use with long-term durability and no aging or deformation.



Cost-Effective Solution: Long service life, low maintenance, and reduced overall project cost.



Fully Certified Quality: Complies with international standards, ensuring safe and reliable application.



Application Fields



Henan LuKuang Trading HDPE ventilation pipes are widely used in various ventilation systems:

Building Engineering: Residential, commercial, hospitals, and schools for air conditioning and ventilation systems.



Tunnel Engineering: Road and railway tunnels for air circulation and harmful gas removal.



Clean Rooms: Electronics, food, and pharmaceutical industries requiring clean air environments.



Other Applications: Underground projects, warehouses, and industrial ventilation systems.
