HDPE Electrofusion 90° Elbow is made from premium virgin PE80 / PE100 material, suitable for water, oil, and gas pipeline systems. 30-year quality guarantee, competitive wholesale price, sufficient stock, and fast delivery.
Contact us for details and quotation.
WhatsApp: 8615515833787 WeChat: 15515833787Size Range: DN25–500 mm (Customization available)
Pressure Class: SDR11 (PN16), SDR13.6 (PN12.5), SDR17 (PN10), SDR21 (PN6), SDR26 (PN6)
Material: High-quality virgin PE80 / PE100, safe and environmentally friendly
Production Capacity: 3 × 40HQ containers weekly, ideal for large-volume orders
Certification: Certified by ISO 14001, ISO 9001, OHSAS 18001, CE, and BS EN 12001

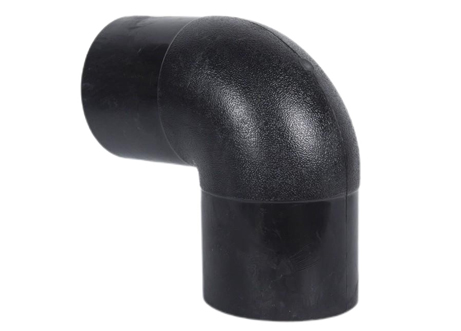

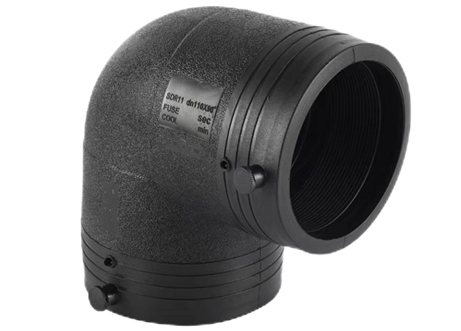

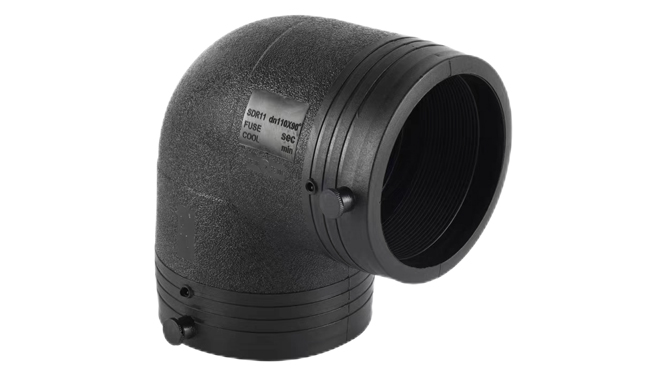

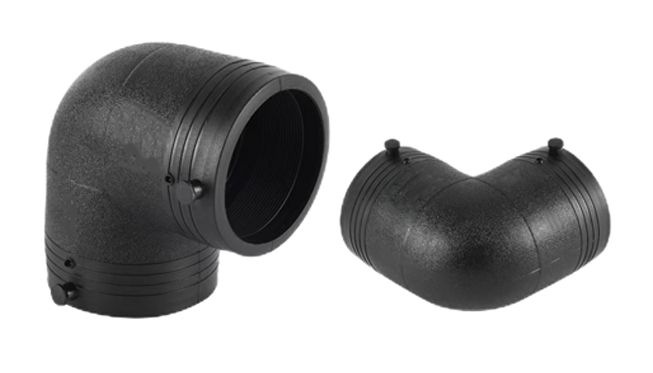

The HDPE Electrofusion 90° Elbow is a key fitting in HDPE piping systems, designed to achieve 90-degree pipeline direction changes. It is manufactured using integrated injection molding technology, ensuring stable structure and reliable performance.
It features a smooth inner wall, strong sealing performance, and secure connections. Widely used in various fluid transportation projects, it is an ideal solution for efficient and safe pipeline direction changes.
The HDPE Electrofusion fitting uses an embedded electric heating coil. When energized, it generates heat to melt the HDPE material at the joint between the fitting and the pipe.
After cooling, a seamless and integrated connection is formed. This method is simple to operate, less affected by environmental and human factors, and offers higher reliability than traditional hot-melt fittings. It is widely used in applications such as gas pipeline systems.
|
Product Name |
HDPE Electrofusion 90° Elbow |
|
Optional Size |
DN25-500mm (Customizable) |
|
SDR Rating |
SDR11, SDR13.6, SDR17, SDR21, SDR26, SDR33, SDR41 |
|
Material |
PE80/PE100 virgin materials, non-toxic and tough |
|
Optional Color |
Regular black and yellow, customizable |
|
Implementation Standards |
ISO4427/ AS/NZS 4130/BS EN 12201/ SABS |
|
Sample |
Free samples available |
|
Connection Method |
Electrofusion connection, firm and leak-proof |
|
Service Life |
Over 70 years underground, no frequent maintenance |
|
Application Scenarios |
Water supply, petroleum, natural gas, municipal, chemical and other pipeline systems |
| D | D1 | L | L1 |
| 32 | 47 | 64 | 40 |
| 40 | 58 | 70 | 43 |
| 50 | 66 | 80 | 49 |
| 63 | 87 | 102 | 61 |
| 75 | 97 | 110 | 66 |
| 90 | 116 | 133 | 76 |
| 110 | 141 | 150 | 76 |
| 160 | 197 | 192 | 98 |
| 200 | 245 | 230 | 110 |
Please send your inquiries to the following email address:sales@mfgpipe.com;whatsapp:+86 15515833787 (We will respond to you within 24 hours).
We supply a full range of electrofusion fittings from DN20 to DN630 mm, with customization available. All products comply with international standards. Key advantages include:
Non-toxic & hygienic: Eco-friendly material, smooth inner wall prevents scaling, suitable for potable water transmission
Excellent corrosion resistance: Inert material resists acids, alkalis, and salts, with strong anti-aging and anti-rust performance
Strong and reliable connection: Electrofusion joints are stronger than the pipe itself, ensuring leak-free performance
High flexibility & seismic resistance: Elongation over 500%, suitable for ground settlement and earthquake resistance
Crack resistance & durability: Resistant to rapid crack propagation, wear-resistant inner surface ensures high flow efficiency
Easy installation: Simple operation, high efficiency, reduces construction time and labor cost
Cost-effective: Long service life with low maintenance cost, high overall value
Eco-friendly & recyclable: Recyclable material supports sustainable engineering projects
