Designed for PVC and PE large diameter pipes, this manual rotary cutter delivers precise cutting without external power. With only 6–8 inches (152–203mm) of working space required, it is ideal for confined areas.
WhatsApp: 8615515833787 WeChat: 15515833787Clean & Safe Cutting – Produces no chips or debris, preventing pipe blockage and keeping the working environment clean.
Confined Space Operation – Requires only 6–8 inches of clearance around the pipe, ideal for trench and restricted-area applications.
Flexible Pipe Adaptation – Spring-loaded design adjusts easily to oval pipes without extra settings.
Cutting & Beveling in One Step – Integrated 15° beveling function reduces extra processes and improves efficiency.
Cost-Effective Solution – Designed for contractors, lowering labor costs for pipe installation and replacement projects.
Wide Size Range – Cuts 160–800mm PVC and PE pipes with accurate straight cutting performance.
Easy Operation – Simple assembly and cutting process, requiring minimal training.
No Power Required – Suitable for field work, trenches, and remote locations without external power supply.

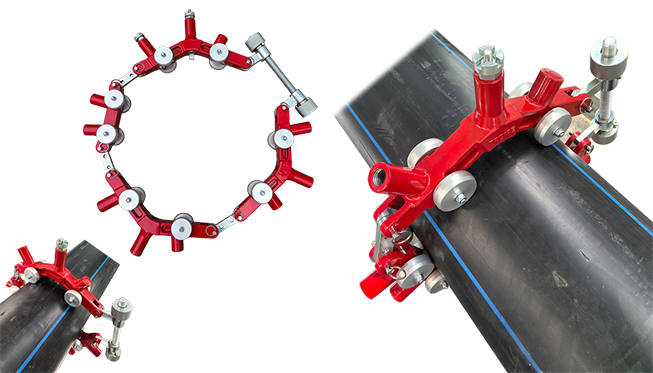

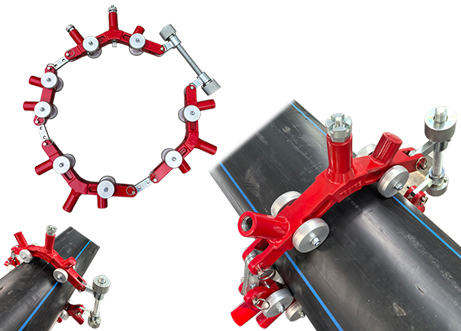

Featuring roller-guided straight cutting, carbide blades, and an integrated 15° beveling function, it efficiently cuts 160–800mm plastic pipes while reducing extra processing steps and improving installation efficiency.
Widely used for large diameter PVC and PE pipe projects in municipal water supply, drainage, gas, and industrial applications. Ideal for pipe connection, replacement, and pipeline renovation, this manual cutter works efficiently in trenches, on-site locations, and remote areas without power supply. It is a reliable solution for contractors, emergency repairs, and routine pipeline maintenance.
|
Name |
Model |
Suitable Pipe Diameter (inch) |
Suitable Pipe Diameter (mm) |
Application |
Required Tool Rest |
Weight (lb) |
Weight (kg) |
|
Rotary Pipe Cutter |
TRC0PE |
6-10 |
160-250 |
PVC, PE |
A,C |
23.2 |
10.5 |
|
Rotary Pipe Cutter |
TRC1PE |
6-12 |
160-355 |
PVC, PE |
A,B,C |
27.6 |
12.5 |
|
Rotary Pipe Cutter |
TRC2PE |
14-18 |
355-500 |
PVC, PE |
A,B,C(2),D |
31.3 |
14.2 |
|
Rotary Pipe Cutter |
TRC3PE |
14-24 |
355-630 |
PVC, PE |
A,B,C(3),D |
37.3 |
16.9 |
|
Rotary Pipe Cutter |
TRC4PE |
14-28 |
355-800 |
PVC, PE |
A,B,C(4),D |
52.1 |
23.6 |
Select the correct cutter model and blade holder according to pipe diameter, and ensure secure installation before use.
Check carbide and beveling blades regularly; replace worn blades to maintain cutting performance.
Keep the rollers properly aligned with the pipe to ensure smooth and straight cutting.
For oval pipes, use the spring-loaded adjustment system to maintain stable contact and achieve smooth cutting.
Keep the working area clean and remove debris after operation to protect equipment performance.
Clean and store the cutter in a dry place after use to prevent rust and damage.
Do not disassemble the equipment without professional guidance. Regularly inspect connections for safe operation.
