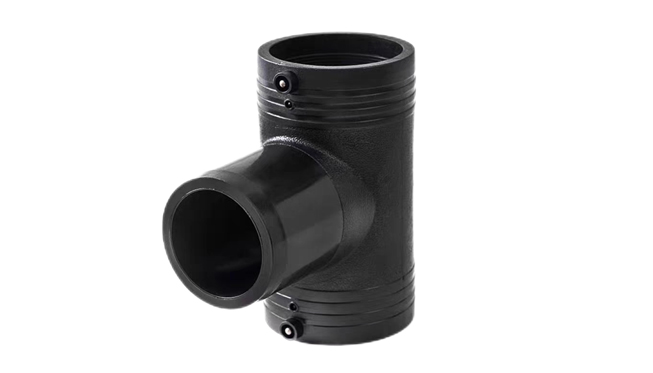

HDPE electrofusion equal tee is a key fitting for PE piping systems, widely used in water, oil, and gas applications. Made from high-quality PE80/PE100, it ensures reliable performance and strong fusion connections.
Competitive wholesale pricing with stock availability for fast delivery. Customization and quotation available anytime.
WhatsApp: 8615515833787 WeChat: 15515833787Size Range: DN25–DN500mm, customizable for specific project conditions
Pressure Rating: SDR11 (PN16) and other grades for different pressure applications
Material: High-quality PE80 or PE100, durable and tough
Supply Capacity: Up to 3 × 40ft containers per week for bulk orders
Certifications: ISO 9001, ISO 14001 and other international standards, export compliant
HDPE electrofusion fittings use electric fusion welding technology, providing joint strength higher than the pipe itself, ensuring secure and leak-free connections. Electrofusion equal tees are key components for branching and merging pipelines of the same diameter.
Based on proven electrofusion technology, a welding machine supplies electric current to the embedded copper coils inside the fitting. The electrical resistance generates heat, melting both the inner surface of the fitting and the outer surface of the pipe simultaneously.
After cooling, a seamless, integrated joint is formed with strength higher than the pipe itself. This ensures excellent sealing performance, prevents leakage, and guarantees safe and reliable system operation.
Selection: Ensure correct material selection based on corrosion resistance, pressure rating, and temperature requirements to match working conditions and avoid safety risks.
Welding: Follow standard electrofusion procedures strictly. Do not modify welding parameters to prevent joint failure.
Inspection: Perform pressure testing after installation to ensure no leakage, and keep the pipeline system dry for safe operation.
|
Products Name |
HDPE Electrofusion Equal Tee |
|
Sizes |
DN 25-500 mm |
|
Pressure Rate |
SDR11, SDR13.6, SDR17, SDR21, SDR26, SDR33, SDR41 |
|
Material |
High quality PE80 or PE100 raw materials |
|
Colour |
Available in black or yellow, or according to customer requirements |
|
Standard |
ISO4427 / AS / NZS 4130 / BS EN 12201 / SABS standard |
|
Sample |
Sample available |

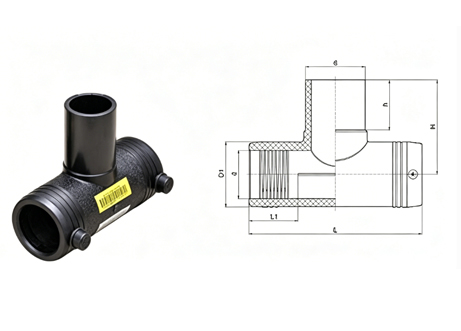

| d | D1 | L | L1 | H | h |
| 32 | 48 | 120 | 40 | 81 | 51 |
| 40 | 58 | 139 | 42 | 90 | 54 |
| 50 | 65 | 160 | 48 | 104 | 64 |
| 63 | 88 | 180 | 58 | 125 | 68 |
| 75 | 99 | 198 | 67 | 130 | 70 |
| 90 | 116 | 230 | 70 | 159 | 89 |
| 110 | 141 | 271 | 76 | 181 | 96 |
| 160 | 198 | 355 | 95 | 212 | 103 |
| 200 | 242 | 414 | 110 | 254 | 118 |
We supply a full range of DN20–DN630 HDPE electrofusion fittings, including tees, elbows, and valves, with customization available. Made from high-quality PE80/PE100 materials, the products comply with international standards, ensure stable quality, and are suitable for global export.
Hygienic & Eco-Friendly: Non-toxic and odorless, certified for potable water use with no scaling inside the pipe
Excellent Corrosion Resistance: PE material resists chemical attack; fusion joints provide strong, leak-free sealing
High Toughness: ≥500% elongation with strong resistance to settlement, impact, and rapid crack propagation
Efficient Installation: Easy electrofusion process, low friction inner wall improves flow efficiency and reduces construction time
Cost-Effective & Durable: Low installation and maintenance cost, service life over 70 years, reusable components
