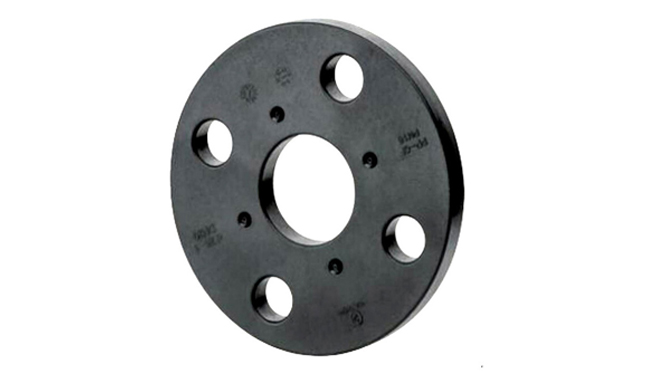

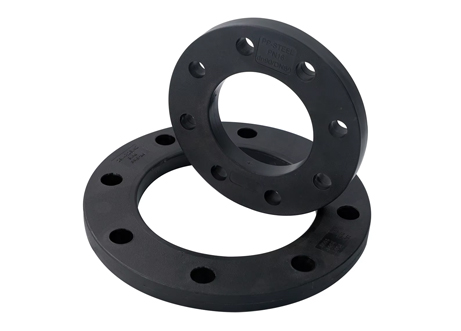

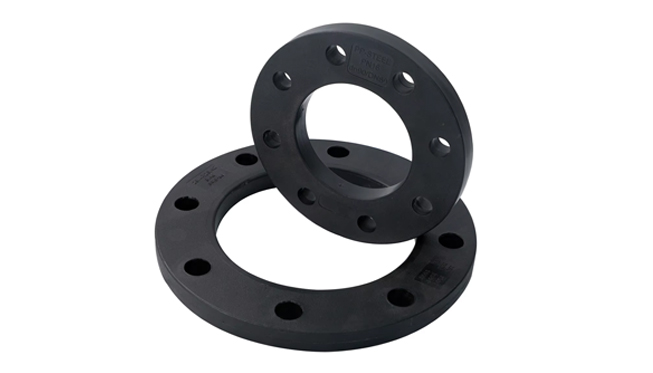

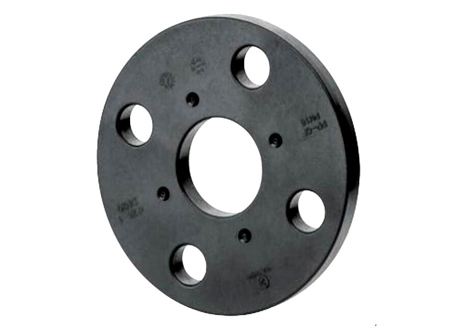

Steel backing rings-Henan LuKuang Trading Co., Ltd.

Core Parameters

Size: DN63–1200mm. Custom sizes available upon request for precise compatibility with various piping connection systems.

Pressure Rating: 4, 6, 9, 12, 16, 20, and 25 bar. Stable pressure resistance for high-pressure and complex working conditions.

Raw Material: Available in plastic, iron, carbon steel, and stainless steel options, selected according to application needs for both performance and cost efficiency.

Supply Capacity: 3 × 40ft containers per week. Strong production capacity ensures efficient fulfillment of large-volume orders and reliable delivery timelines.

Certifications: CE, BS EN 12001, ISO9001, ISO14001, OHSAS 18001. Fully certified for global export with full compliance assurance.
A professional supplier of pipeline fittings, including steel backing rings, PVC pipes, fittings, and valves. Products are widely used in water supply, chemicals, water treatment, oil & gas, environmental protection, pharmaceuticals, and mining industries. The company follows a strict quality-first and customer-oriented approach, operating under ISO9001 standards with advanced production facilities, standardized workshops, and comprehensive testing systems to ensure high-quality and cost-effective products for global customers.

A full range of pipeline fittings is available for one-stop procurement, including flanges, steel backing rings, PVC pipe nipples, equal and reducing tees, ball valves, couplings, reducers, end caps, and 45°/90° elbows, covering sizes from DN63 to DN1200 and standards such as SDR11 and SDR17. Steel backing rings are essential components used to connect pipes and equipment, typically working with PVC pipe nipples to ensure secure, leak-free, and stable pipeline connections, especially in medium- and high-pressure systems.

Function

The core function of steel backing rings is to achieve precise sealing through bolt tightening, effectively preventing leakage of gases, liquids, and other fluids. The sealing mechanism relies on pre-drilled holes in the flange, where bolts are inserted and tightened to ensure a tight connection between two flanges. The addition of a sealing gasket further enhances sealing performance, allowing the pipeline system to remain secure and reliable even under high-pressure and complex working conditions, preventing resource loss and safety risks.

Another key advantage is easy operation. No complex tools are required—tightening or loosening bolts allows for quick installation or disassembly of pipelines, making it especially suitable for emergency maintenance. This simple and efficient process significantly reduces construction and repair time, lowers maintenance difficulty and labor costs, and improves overall engineering efficiency.

Product Basic Information Table

Product name	Steel backing rings
Sizes available	DN63-1200mm
Pressure Class	4, 6, 9, 12, 16,20, and 25 Bar
Material used	Carbon steel or stainless steel
Surface finish	Galvanized, nylon coated, or original with anti-rust oil
Standard	Customized made available
Samples available	Yes, sample available for small quantity
Packing method	Wooden case
MOQ	Negotiable
Production lead time	Depending on the order quantity
Warranty time	6 years for normal using
Payment term	T/T or LC at sight
Country of origin	China

Dimension Table

The steel backing rings can be provided from DN63mm to DN1200mm, as below:

Specification	PN10	PN16
F63	√	√
F75	√	√
F90	√	√
F110	√	√
F125	√	√
F140	√	√
F160	√	√
F180	√	√
F200	√	√
F225	√	√
F250	√	√
F280	√	√
F315	√	√
F355	√	√
F400	√	√
F450	√	√
F500	√	√
F560	√	√
F630	√	√
F710	-	√
F800	-	√
F900	-	√
F1000	-	√
F1200	-	√

Note: If you have specific requirements regarding product specifications, we can provide customized solutions tailored to your needs. For further product details and quotation information, please contact us.

Please send an email to sales@mfgpipe.com or reach out via WhatsApp at +86 15515833787; we will respond within 24 hours.

Advantages

✔High Pressure & Corrosion Resistance: Suitable for high-pressure and corrosive environments such as oil, chemical, and wastewater systems, ensuring long-term stable operation.

✔Excellent Sealing Performance: Bolt tightening with gasket sealing ensures a tight, leak-free connection, improving system safety and reducing resource loss.

✔Wide Application Range: Compatible with various working conditions including high/low temperature, pressure, and corrosion; works with PVC pipe nipples and other fittings for municipal, industrial, mining, and construction use.

✔Easy Installation & Maintenance: No special tools required; quick assembly and disassembly reduces labor cost and improves emergency repair efficiency.

✔Flexible Material Options: Available in plastic, iron, carbon steel, and stainless steel to meet different performance and cost requirements.

✔Full Size Customization: DN63–DN1200 with PN10 and PN16 options; custom sizes available for diverse engineering needs.

✔Reliable Quality: Manufactured under ISO9001 standards with strict quality control; 6-year warranty for dependable performance.

✔Cost-Effective Supply: Strong factory supply chain, competitive wholesale pricing, secure wooden packaging, and stable production capacity for bulk orders.
