PVC Reducing Tee-Henan LuKuang Trading Co., Ltd.

Core Parameters

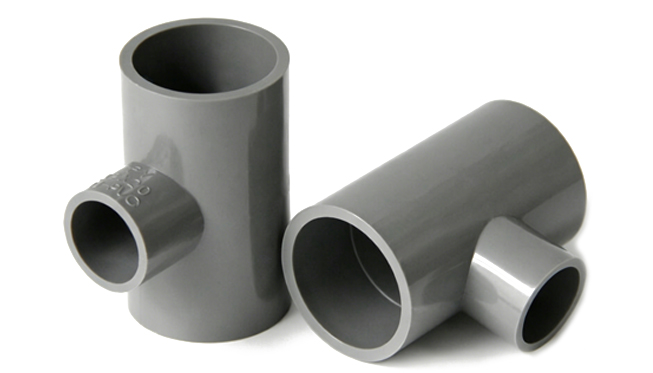

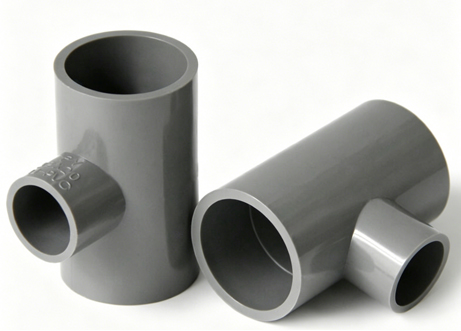

Product Name: PVC Reducing Tee

Size Range: DN20–1000mm, customizable for special specifications to match project requirements
Pressure Rating: 4–25 bar, stable and suitable for various pressure conditions

Material: Premium virgin PVC, non-toxic, durable, meets drinking water standards

Color Options: Standard black or grey; customizable per client request

Standards: EN12201-3, EN1555, EN ISO 15494, compliant with international quality norms

Samples: Free samples available for quality inspection

Packaging: Cartons or PP bags to protect during transport

MOQ: Negotiable, supports small trial orders for flexible procurement

Production Lead Time: 20ft container 7–10 days, 40ft container 15–20 days

Warranty: 30 years under normal use, reliable quality with worry-free after-sales

Payment: T/T or L/C at sight, flexible and convenient

Origin: China, factory direct supply for competitive pricing

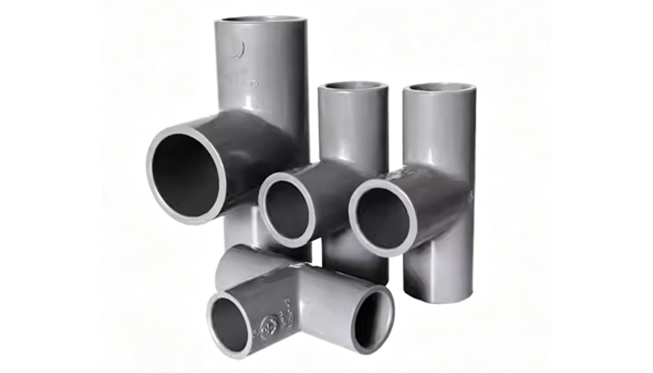

PVC Reducing Tees are essential components in piping systems, designed to enable flexible diameter transitions. Made from high-quality PVC, they offer excellent fire resistance, corrosion resistance, pressure tolerance, and impact strength.

These tees are easy to install and widely used across residential buildings, large construction projects, aquaculture, municipal engineering, and other industries, perfectly adapting to complex piping layouts and diverse project requirements.

Function

PVC reducing tees are designed for flexible pipe diameter transitions, allowing easy connection between pipes of different sizes. This key feature makes them ideal for complex pipeline systems, ensuring smooth layout adaptation across various engineering requirements.

Structurally, the branch design enables fluid to flow smoothly between different diameter pipes, effectively reducing flow resistance and friction loss. The smooth inner wall minimizes adhesion, improves transmission efficiency, reduces energy consumption, and ensures stable system operation.

Material Advantages

Made from high-quality PVC (polyvinyl chloride), these fittings are lightweight yet strong, with excellent corrosion resistance against acids, alkalis, and salts. They are suitable for complex media transport conditions.

PVC also offers outstanding aging resistance, maintaining long-term performance in outdoor and underground environments. This ensures durability, stable operation, and significantly lower maintenance costs.

Product Basic Information Table

Products Name	PVC Reducing Tee
Sizes	DN 20mm-1000 mm
Pressure Rate	4, 6, 9, 12, 16,20, and 25 Bar
Material	High quality PVC raw materials
Colour	Black, gray, or as per request
Standard	EN12201-3，EN1555，EN ISO 15494
Sample	Sample available
Packing	Carton or PP bag
MOQ	Negotiable
Production	Depending on the order quantities. 20 ft: 7-10 days，40 ft: 15-20 days
Warranty	30 years for normal using
Payment Term	T/T or L/C at sight
Country of Original	China

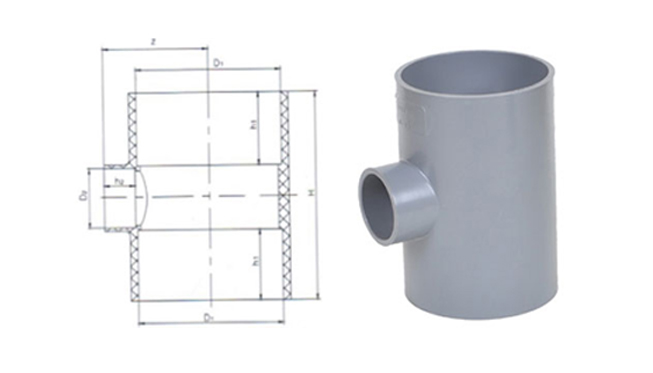

Dimension Table

Normal size DN（mm）	diameter（mm）
Normal size DN（mm）	H	H1	H2	ž
25 * 20	60.00	19.00	16.00	30.50
32 * 20	69.00	22.00	16.00	35.00
32 * 25	74.50	22.00	19.00	36.00
40 * 20	79.00	26.00	16.00	39.00
40 * 25	83.70	26.00	19.00	42.00
40 * 32	91.00	26.00	24.00	45.00
50 * 20	87.50	31.00	16.00	44.50
50 * 25	92.50	31.00	19.00	45.00
50 * 32	95.50	31.00	22.00	50.50
50 * 40	108.00	31.00	26.00	54.00
63 * 20	102.00	38.00	16.00	50.00
63 * 25	106.50	38.00	19.00	53.00
63 * 32	112.50	38.00	22.00	56.50
63 * 40	121.00	38.00	26.00	60.50
63 * 50	132.50	38.00	31.00	66.50
75 * 32	126.00	44.00	22.00	63.50
75 * 40	134.50	44.00	26.00	68.50
75 * 50	143.50	44.00	31.00	73.00
75 * 63	156.50	44.00	38.00	78.50
90 * 50	159.50	51.00	31.00	79.50
90 * 63	173.50	51.00	38.00	86.50
90 * 75	185.00	52.00	44.00	92.50
110 * 50	179.00	61.00	31.00	90.00
110 * 63	192.00	61.00	38.00	96.00
110 * 75	205.00	61.00	44.00	100.50
110 * 90	220.00	61.00	51.00	109.50
125 * 75	237.00	70.00	44.00	107.50
125 * 90	237.00	70.00	51.00	118.00
125 * 110	256.00	70.00	61.00	128.50
140 * 90	248.00	70.00	51.00	123.50
140 * 110	268.50	76.00	61.00	144.50
160 * 75	251.00	86.00	44.00	125.00
160 * 90	267.50	86.00	51.00	135.00
160 * 110	286.50	86.00	61.00	144.50
160 * 125	303.00	86.00	70.00	151.50
160 * 140	318.50	86.00	76.00	159.00
200 * 75	291.00	106.00	44.00	145.00
200 * 90	331.00	106.00	51.00	152.00
200 * 110	331.00	106.00	61.00	165.00
200 * 160	380.50	106.00	86.00	190.00
225 * 110	359.50	119.00	61.00	191.00
225 * 160	406.50	119.00	86.00	213.00
250 * 110	378.00	131.00	61.00	189.00
250 * 160	428.50	131.00	86.00	223.50
250 * 200	468.50	131.00	106.00	233.50
280 * 200	512.00	147.00	106.00	255.00
315 * 110	447.50	164.00	61.00	223.00
315 * 160	497.50	164.00	86.00	248.00
315 * 200	537.00	164.00	106.00	268.00
315 * 225	537.00	164.00	119.00	281.00
315 * 250	587.00	164.00	131.00	293.00
355 * 110	558.00	184.00	61.00	234.50
355 * 160	558.00	184.00	86.00	256.50
355 * 200	692.00	184.00	107.00	277.50
355 * 225	692.00	184.00	118.00	289.50
355 * 250	692.00	184.00	131.00	346.00
400 * 200	644.00	206.00	106.00	316.00
400 * 225	644.00	206.00	119.00	310.00
400 * 250	751.00	206.00	131.00	341.00
400 * 315	751.00	206.00	164.00	374.00

Note: If you have specific requirements regarding product specifications, we can provide customized solutions tailored to your needs. For further product details and quotation information, please contact us.

Please send an email to sales@mfgpipe.com or reach out via WhatsApp at +86 15515833787; we will respond within 24 hours.

Advantages

Henan Lumine Trade’s PVC reducing tees offer outstanding quality and performance, making them a preferred choice for global pipeline projects:

✔Lightweight & Easy Transport:Weighs only 1/6 of cast iron pipes, reducing shipping costs and simplifying handling, ideal for large-scale projects.

✔High Strength & Pressure Resistance:Withstands up to 45MPa, ensuring stable operation and preventing high-pressure leaks.

✔Low Resistance & Efficient Flow:Smooth inner walls reduce fluid loss by up to 30% compared to cast iron, improving efficiency and lowering energy consumption.

✔Corrosion Resistant & Durable:Excellent resistance to acids, alkalis, chemicals, and harsh environments, maintaining long-term performance without aging.

✔Easy Installation:Supports solvent cement and flange connections, simple and reliable, reducing labor and shortening project timelines.

✔Long Service Life:Up to 50 years under normal conditions, minimizing maintenance and replacement costs.

✔Cost-Effective:Lower transport and installation costs; total project cost can be 30–40% less than cast iron alternatives.

✔Safe & Non-Toxic:Complies with drinking water standards, ensuring no contamination, suitable for water supply and high-hygiene applications.
