Power Solution Parameters
-
Electric Solution: Servo motor power options: 2.0kw, 2.6kw, 3.8kw, stable power, suitable for conventional processing scenarios.
Hydraulic Solution: Hydraulic requirements: 30L/min, pressure: 10Mpa;
suitable power supply: 380V.
Frequency: 50/60Hz, suitable for heavy load and complex working conditions.
Pneumatic Solution: Air source requirements: 1500-3500L/min.
pressure: 0.8-1.0Mpa.
Power options: 2HP, 3HP, 4HP, suitable for special operation environments such as flammable and explosive, noise-free areas.
-

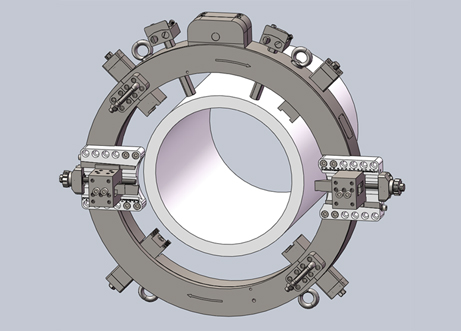

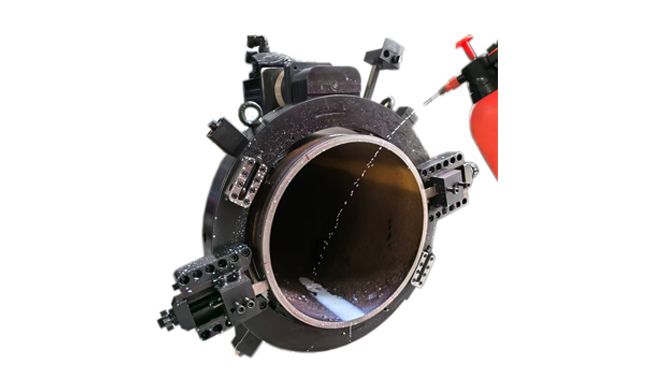

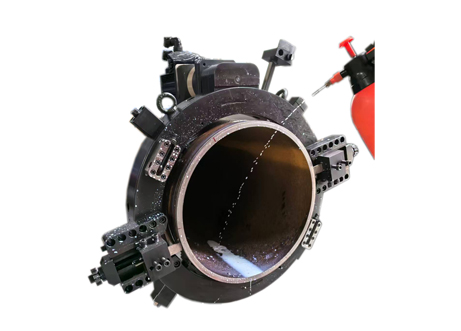

The TSCB series split-type cutting beveling machine is a lightweight and efficient special equipment for pipeline cutting and beveling. With the core advantages of light weight, small radial space, easy operation and simple maintenance, it has become the preferred equipment for pipeline processing in various industries. The machine body adopts a split circular ring structure, which is flexible and fast to split and assemble. It can be easily installed at any position of the pipeline, and processing can be completed without disassembling the pipeline, greatly improving operation efficiency.
The equipment is suitable for various grades of carbon steel, stainless steel, alloy steel, X80 steel and other metal materials, and is widely used in pipeline installation projects and pipeline maintenance and emergency repair operations in petroleum, chemical, natural gas, food, boiler, pharmaceutical, nuclear power, venue construction and other industries, fully meeting on-site operation needs.
Core Features
Wide Material Adaptability: Compatible with alloy steel, carbon steel, stainless steel and X80 steel, the processing thickness can reach 120mm, suitable for various hard engineering materials, meeting pipeline processing needs of different industries.
Efficient and Convenient Processing: Modular design, easy and fast installation, one-time completion of cutting and beveling, no secondary processing required; automatic feed configuration, supporting multiple feed adjustments, high processing efficiency and precision.
Flexible Power Switching: Supports free switching of three power.
sources: electric, hydraulic and pneumatic, with strong interchangeability, and can be flexibly selected according to on-site working conditions to adapt to different operation environments.

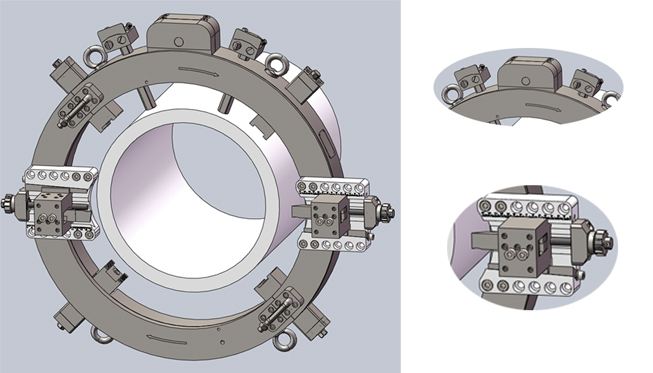

Split Design: Split circular ring structure, can be installed at any position of the pipeline, especially suitable for complex operation scenarios such as fixed pipelines and narrow spaces, solving the installation limitations of traditional equipment.
Strong Durability: The fixed ring is made of aluminum alloy or alloy steel, and the gear ring is made of high-strength alloy steel, which is stable in structure, corrosion-resistant and wear-resistant, extending the service life of the equipment.
Comprehensive Processing Functions: It can realize various processing needs such as cutting, external bevel, internal bevel, flat mouth, boring inner hole, repairing outer circle and repairing flange. The bevel forms support single V, double V, U-type, J-type and composite type, which can be customized on demand.
Applications
Widely used in petroleum, chemical, natural gas, food, boiler, pharmaceutical, nuclear power, venue construction and other industries, it can efficiently complete on-site operations such as pipeline installation projects, daily pipeline maintenance, and emergency repairs. It is especially suitable for complex working conditions such as fixed pipelines, narrow spaces, and heavy-load processing, and is an efficient and reliable equipment in the field of pipeline processing.
Service & Support
Custom bevel types are supported. According to the customer's specific processing needs, various bevel types such as single V, double V, U-type, J-type and composite type can be customized. One-stop services including equipment installation guidance, operation training and after-sales maintenance are provided to ensure the stable operation of the equipment and solve your worries.
