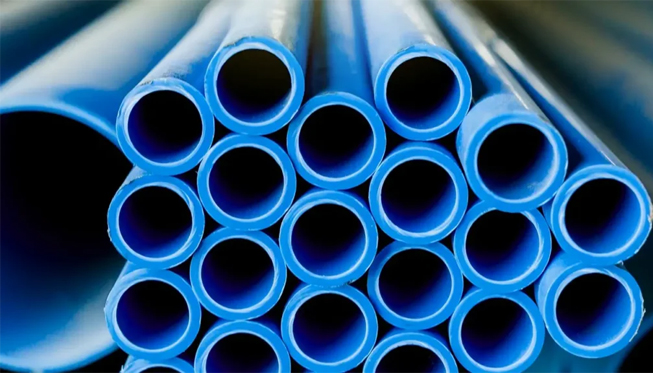

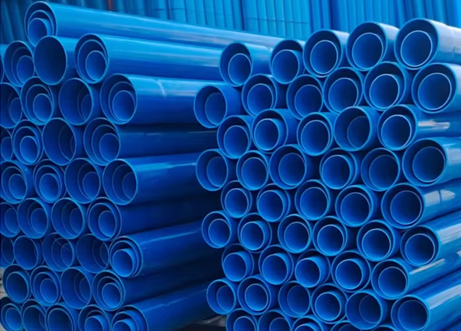

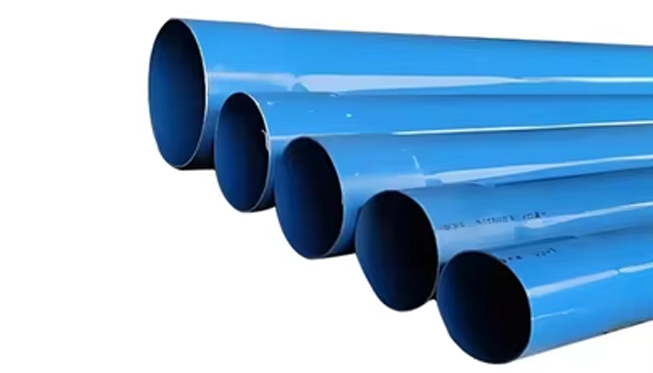

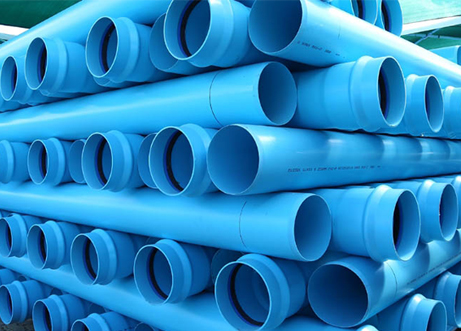

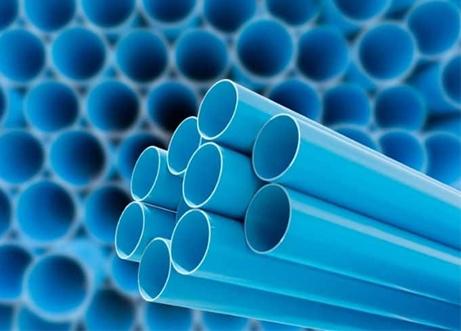

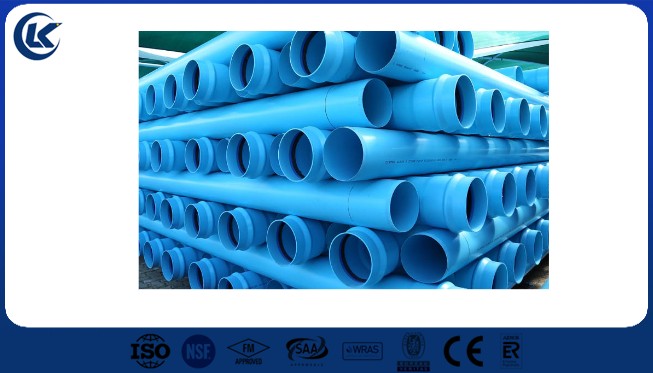

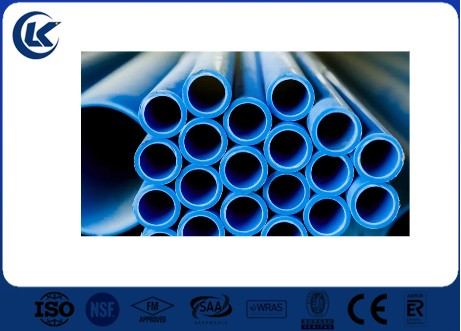

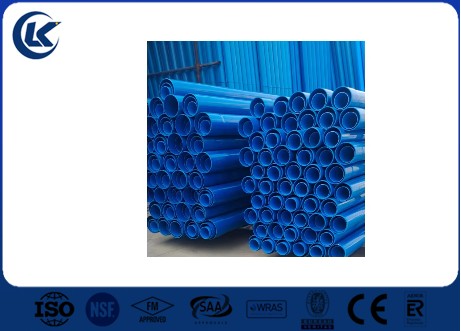

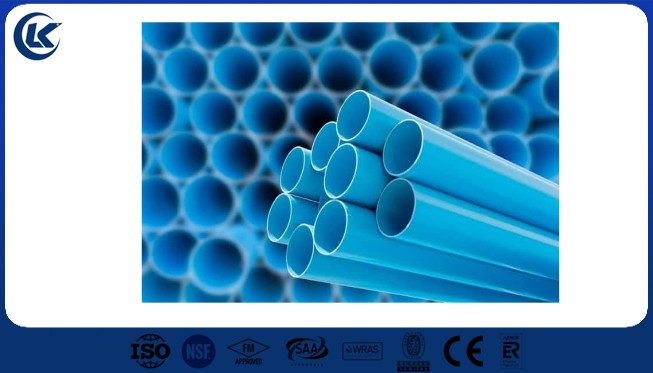

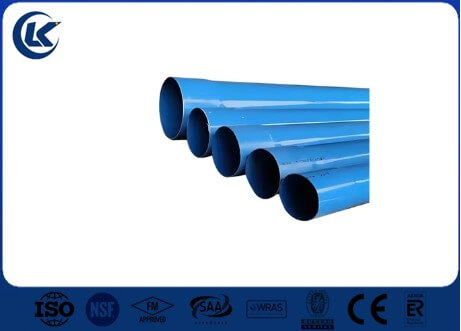

PVC pipes for industrial pipeline-Henan LuKuang Trading Co., Ltd.

Core Parameters

Size: DN20–800mm, 1/2"–8" (custom sizes available based on specific industrial requirements to suit various applications)

Service Life: Up to 70 years under normal industrial conditions, reducing frequent replacement and long-term maintenance costs while improving overall project efficiency

Raw Material: High-quality virgin PVC material with no impurities, excellent toughness and chemical stability, ensuring long service life and safe fluid transport from the source

Certifications: CE, ISO9001, ISO14001, and OHSAS 18001 certified, ensuring traceable quality and global export compliance for international industrial standards
Industrial PVC pipes from Henan Lukuang Trading are high-performance piping solutions designed for complex industrial conditions. With premium raw materials and strict manufacturing control, they effectively solve common industry problems such as poor corrosion resistance, easy deformation, scaling, and high maintenance costs, making them widely used in chemical, oil and gas, mining, power, water supply and drainage, and heating systems.

Produced with precision extrusion technology, the pipes feature a smooth inner surface with low flow resistance, improving transport efficiency and reducing energy consumption. They offer strong structural strength, impact resistance, and stability under high pressure, along with excellent corrosion resistance, electrical insulation, and thermal resistance. This makes them a cost-effective alternative to traditional metal pipes, helping enterprises reduce procurement and maintenance costs while improving overall productivity.

Product Basic Information Table

Name	PVC pipes for industrial pipeline
Size	DN20-800mm
Material	PVC
Colors	Black, blue, gray, or as per request
Standard	ISO15493, SCH40, SCH80, BS3505, JIS K6741
Remarks	Customers’ logo available
Sample	Samples are available
Packing	Pipe length of 6 meters or 12 meters, or the length can be customized according to the customer's requirements on the premise of convenient transportation.
MOQ	Negotiable
Production	Depending on the order quantities. 20 ft: 7-10 days，40 ft: 15-20 days
Certification	CE Certification, ISO9001, ISO14001, OHSAS 18001
Warranty	30 years for normal using
Payment Term	T/T or L/C at sight
Country of Original	China

Specification Parameter Table

UPVC
Nominal	Socket Type
SIZE	ANSI				DIN			JIS
SIZE	D	Tolera	SCH80 T(min/mm)	SCH40 T(min/mm)	D	Tolera	T(min/mm)	D	Tolera	T(min/mm)
1/2"	21.34	+0.10	3.73	2.77	20	+0.2	2.3	22	±0.2	2.7
3/4"	26.67	+0.10	3.91	2.87	25	+0.2	2.8	26	±0.2	2.7
1"	33.40	+0.13	4.55	3.38	32	+0.2	3.0	32	±0.2	3.2
1-1/4"	42.16	+0.13	4.85	3.56	40	+0.2	3.6	38	±0.2	3.2
1-1/2"	48.26	+0.15	5.08	3.68	50	+0.2	3.7	48	±0.2	3.7
2"	60.32	+0.15	5.54	3.91	63	+0.3	4.7	60	±0.2	4.1
2-1/2"	73.02	+0.18	7.01	5.16	75	+0.3	5.6	76	±0.3	4.1
3"	88.90	+0.20	7.62	5.49	90	+0.3	6.7	89	±0.3	5.5
4"	114.30	+0.23	8.56	6.02	110	+0.4	8.1	114	±0.4	6.6
5"	141.30	+0.25	9.52	6.55	140	+0.5	10.3	165	±0.5	9.0
6"	168.28	+0.28	10.97	7.11	160	+0.5	11.8	216	±0.7	10.3
8"	219.08	+0.38	12.70	8.18	200	+0.7	14.7	267	±0.9	12.7

CPVC
Nominal	Socket Type
SIZE	ANSI				DIN			JIS
SIZE	D	Tolera	SCH80 T(min/mm)	SCH40 T(min/mm)	D	Tolera	T(min/mm)	D	Tolera	T(min/mm)
1/2"	21.34	+0.10	3.73	2.77	20	+0.2	2.3	22	±0.2	2.7
3/4"	26.67	+0.10	3.91	2.87	25	+0.2	2.8	26	±0.2	2.7
1"	33.40	+0.13	4.55	3.38	32	+0.2	3.0	32	±0.2	3.2
1-1/4"	42.16	+0.13	4.85	3.56	40	+0.2	3.6	38	±0.2	3.2
1-1/2"	48.26	+0.15	5.08	3.68	50	+0.2	3.7	48	±0.2	3.7
2"	60.32	+0.15	5.54	3.91	63	+0.3	4.7	60	±0.2	4.1
2-1/2"	73.02	+0.18	7.01	5.16	75	+0.3	5.6	76	±0.3	4.1
3"	88.90	+0.20	7.62	5.49	90	+0.3	6.7	89	±0.3	5.5
4"	114.30	+0.23	8.56	6.02	110	+0.4	8.1	114	±0.4	6.6
5"	141.30	+0.25	9.52	6.55	140	+0.5	10.3	165	±0.5	9.0
6"	168.28	+0.28	10.97	7.11	160	+0.5	11.8	216	±0.7	10.3
8"	219.08	+0.38	12.70	8.18	200	+0.7	14.7	267	±0.9	12.7

Note: If you have specific requirements regarding product specifications, we can provide customized solutions tailored to your needs. For further product details and quotation information, please contact us.

Please send an email to sales@mfgpipe.com or reach out via WhatsApp at +86 15515833787; we will respond within 24 hours.

Application Scenarios

Industrial PVC pipes are widely used across multiple industries due to their excellent overall performance, meeting various complex transportation requirements:

Chemical Industry: Used to transport raw materials, finished products, and low-concentration chemical media. It reduces transportation costs and prevents corrosion-related leakage risks, improving efficiency and safety.

Oil & Gas: Applied in extraction and transportation processes under complex outdoor and underground conditions, with strong weather resistance and sealing performance to ensure safe and stable energy delivery.

Mining: Suitable for ore processing, mining operations, and tailings transport. It resists abrasion and corrosion from slurry and mineral particles, reducing replacement frequency and maintenance costs.

Power Industry: Used for cooling water systems and cable protection. It is non-conductive and thermally insulating, ensuring safe and stable operation of electrical systems.

Water Supply & Drainage: Ideal for industrial water supply, wastewater treatment, and discharge systems. Smooth inner walls prevent scaling and blockage while ensuring efficient flow and environmental compliance.

Heating Systems: Used in industrial and commercial heating networks, often combined with insulated pipe systems, ensuring efficient heat transfer and reduced energy loss.

Advantages

✔UPVC Series: Max temperature 60°C, long-term use at 45°C. Suitable for cold water, corrosive media, irrigation, drainage, and general industrial applications with high cost performance.

✔CPVC Series: Max temperature 110°C, long-term use at 95°C. Suitable for hot water and highly corrosive media in industries such as oil, chemical, electronics, metallurgy, food, and pharmaceuticals.

✔General Features: Corrosion resistant, impact resistant, smooth inner wall, anti-scaling, insulating, non-conductive, easy to install, and long service life. It offers a cost-effective alternative to metal pipes, reducing installation and maintenance costs while improving operational efficiency.
