Injection-molded HDPE butt fusion reducers are designed for HDPE piping systems, offering stable quality and reliable performance with a 30-year warranty.
We provide highly competitive wholesale pricing, with regular sizes in stock for fast delivery. Contact us today for more details, pricing, and customized solutions.
WhatsApp: 8615515833787 WeChat: 15515833787Product Name: HDPE Butt Fusion Reducer / HDPE Butt Fusion Reducing Pipe
Size Range: DN75–DN630mm (customizable based on project requirements)
Pressure Rating: SDR11 (PN16), SDR13.6 (PN12.5), SDR17 (PN10), SDR21 (PN6), SDR26 (PN6)
SDR Options: SDR11, SDR13.6, SDR17, SDR21, SDR26, SDR33, SDR41
Material: High-quality virgin PE80 or PE100, no recycled material, ensuring stable performance
Color Options: Black, Blue, or customized upon request
Standards: ISO 4427, AS/NZS 4130, BS EN 12201, SABS compliant
Supply Capacity: Up to 3 × 40ft containers per week, supporting bulk orders
Certifications: ISO 9001, ISO 14001, OHSAS 18001, CE, BS EN 12001

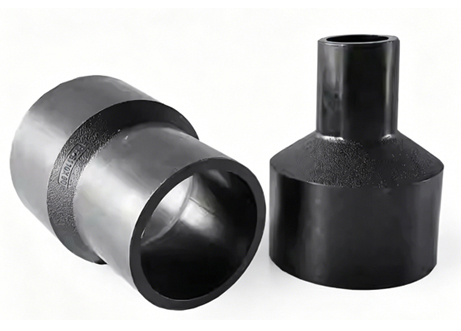

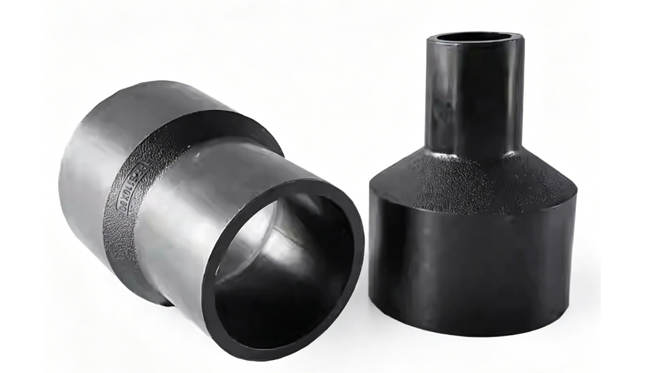

HDPE butt fusion reducers are designed for connecting pipes of different diameters, ensuring smooth flow transition and minimizing resistance. The one-piece injection molding structure provides excellent sealing and system reliability, effectively preventing leakage.
Compatible with butt fusion technology, the pipe ends are heated and fused into a seamless, leak-proof connection. The joint strength matches the pipe itself, ensuring long service life with minimal maintenance.
|
Product name |
HDPE butt fusion reducer |
|
Sizes available |
DN75-630mm |
|
SDR rating |
SDR11, SDR13.6, SDR17, SDR21, SDR26, SDR33, SDR41 |
|
Material |
Top quality new PE80 or PE100 raw material |
|
Colors available |
Black or blue, or as per request |
|
Standards follow to |
ISO4427/ AS/ NZS 4130/ BS EN 12201/ SABS standard |
|
Samples available |
Available |

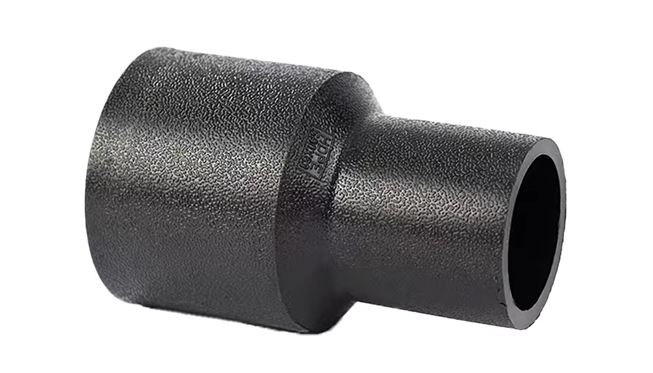

HDPE butt fusion reducers can be customized to meet specific project requirements, ensuring precise connection between different pipe diameters. This flexibility enhances installation efficiency while maintaining excellent sealing, durability, and pressure resistance for smooth and reliable flow.
Made from high-quality HDPE material, they offer outstanding resistance to corrosion, temperature, aging, and impact, making them suitable for long-term use in outdoor and underground environments with minimal maintenance.

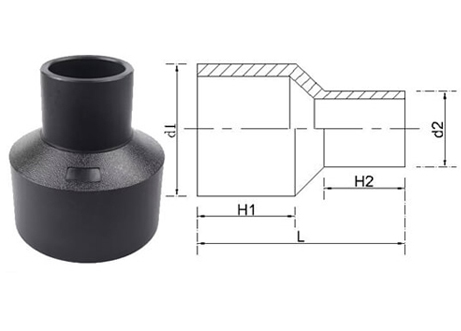

| D×d | E | e | L1 | L2 | L |
| 63/32 | 5.8 | 3 | 64 | 45 | 146 |
| 90/50 | 8.2 | 4.6 | 80 | 57 | 213 |
| 90/63 | 8.2 | 5.8 | 80 | 65 | 202 |
| 90/75 | 8.2 | 6.8 | 80 | 72 | 192 |
| 110/32 | 10 | 3 | 84 | 64 | 180 |
| 110/50 | 10 | 4.6 | 84 | 57 | 244 |
| 110/63 | 10 | 5.8 | 83 | 65 | 233 |
| 110/90 | 10 | 8.2 | 83 | 80 | 204 |
| 125/90 | 11.4 | 8.2 | 89 | 80 | 200 |
| 125/110 | 11.4 | 10 | 89 | 83 | 213 |
| 140/125 | 12.7 | 11.4 | 93 | 88 | 205 |
| 160/63 | 14.6 | 5.8 | 100 | 64 | 216 |
| 160/90 | 14.6 | 8.2 | 100 | 80 | 254 |
| 160/110 | 14.6 | 10 | 100 | 83 | 235 |
| 160/125 | 14.6 | 11.4 | 100 | 88 | 233 |
| 160/140 | 14.6 | 12.7 | 100 | 100 | 222 |
| 180/160 | 16.4 | 14.6 | 106 | 100 | 256 |
| 200/63 | 18.2 | 5.8 | 114 | 64 | 216 |
| 200/110 | 18.2 | 10 | 114 | 84 | 275 |
| 200/160 | 18.2 | 14.6 | 114 | 100 | 257 |
| 200/180 | 18.2 | 16.4 | 114 | 106 | 230 |
| 225/160 | 20.5 | 14.6 | 122 | 100 | 294 |
| 225/200 | 20.5 | 18.2 | 122 | 114 | 293 |
| 250/63 | 22.7 | 5.8 | 131 | 64 | 267 |
| 250/160 | 22.7 | 14.6 | 131 | 100 | 329 |
| 250/200 | 22.7 | 18.2 | 131 | 114 | 297 |
| 315/90 | 28.6 | 8.2 | 152 | 80 | 308 |
| 315/110 | 28.6 | 10 | 152 | 84 | 318 |
| 315/225 | 28.6 | 20.5 | 152 | 122 | 373 |
| 315/250 | 28.6 | 22.7 | 152 | 132 | 348 |
| 355/250 | 32.2 | 22.7 | 167 | 132 | 398 |
| 400/315 | 36.4 | 28.6 | 182 | 152 | 497 |
| 450/355 | 40.9 | 32.3 | 197 | 167 | 456 |
| 500/400 | 45.4 | 36.4 | 217 | 182 | 490 |
Safe & Hygienic: Non-toxic, smooth inner surface prevents scaling and protects water quality
Excellent Corrosion Resistance: Resistant to a wide range of chemicals for harsh environments
High Joint Strength: Fusion connection ensures leak-proof performance with lifespan equal to the pipe
High Toughness: Strong resistance to ground settlement and seismic impact
RCP Resistance: Prevents crack initiation and propagation for safer operation
Flexible & Durable: Scratch-resistant and adaptable to various installation conditions
High Flow Efficiency: Smooth inner wall reduces friction and improves flow capacity
Easy Installation: Simple process reduces construction time and cost
Cost-Effective: Low installation and maintenance costs
Long Service Life: Up to 70+ years for underground use
Recyclable: Environmentally friendly and sustainable
Widely used in building water supply and drainage, municipal water systems, gas transmission pipelines, agricultural irrigation, industrial water systems, and wastewater treatment projects. Fusion connection ensures strong, reliable performance in complex and pressure-demanding environments.
We offer professional customization, specification consultation, and sample testing services for HDPE butt fusion reducers.
For product details, pricing, and delivery time, please contact us. We will respond within 24 hours with tailored solutions to support your project.
