PVC Equal Tee is suitable for water, oil and natural gas transmission systems. The product comes with a 30-year quality guarantee. We offer highly competitive wholesale prices, keep regular sizes in stock, and ensure fast delivery. For more information about PVC Equal Tee, please feel free to contact us.
WhatsApp: 86 15515833787 WeChat: 15515833787Size: DN20mm–1000mm, customizable
Pressure Rating: 4bar, 6bar, 9bar, 12bar, 16bar, 20bar, 25bar
Raw Material: High-quality virgin PVC
Supply Capacity: 3×40ft containers per week
Certifications: CE, BS EN 12001, ISO9001, ISO14001, OHSAS 18001
Henan Lukuang Trading is a professional supplier of PVC pipes, fittings and valves. Our products are widely used in water supply, chemical industry, water treatment, petroleum, environmental protection, pharmaceutical and other fields.We adhere to the business philosophy of “Quality First, Customer Supreme”. Your satisfaction is our eternal pursuit. We produce strictly in accordance with ISO4427 and ISO9001 quality management systems, use top-grade raw materials, and are equipped with standardized workshops, complete laboratory quality control systems and professional testing equipment, committed to providing reliable products to customers worldwide.

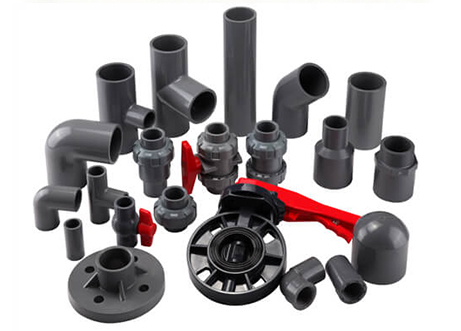

We supply a full range of PVC fittings, including flanges, nipples, equal tees, reducing tees, ball valves, couplings, reducers, end caps, 45° elbows, 90° elbows, etc.PVC Equal Tee is a pipe fitting with three equally sized ports, mainly used at pipeline branches for one inlet and two outlets, or two inlets and one outlet, to achieve stable fluid distribution and transmission.
PVC fittings are widely used in water supply, petroleum, natural gas, chemical, water treatment, environmental protection, pharmaceutical and other fields.
Light weight: Only 1/6 of cast iron pipes, easy to transport
High strength: Withstands pressure up to 45MPa
Low resistance: Smooth inner wall, reduces loss by 30% compared with cast iron pipes
Corrosion resistance: Excellent acid, alkali, chemical and electrochemical resistance
Easy installation: Solvent cement or flange connection, reliable sealing
Long service life: Up to 50 years under normal working pressure
Low cost: Lower transportation and installation cost, 30–40% lower total project cost than cast iron pipes
Non-toxic & hygienic: Meets drinking water standards, no secondary pollution
|
Item |
Details |
|
Product Name |
PVC Equal Tee |
|
Size |
DN20mm–1000mm |
|
Pressure Rating |
4, 6, 9, 12, 16, 20, 25 bar |
|
Material |
High-grade PVC raw material |
|
Color |
Black, gray or customized |
|
Standards |
EN12201-3, EN1555, EN ISO 15494 |
|
Samples |
Available |
|
Packing |
Carton or PP bag |
|
MOQ |
Negotiable |
|
Lead Time |
7–10 days for 20ft container, 15–20 days for 40ft container |
|
Warranty |
30 years under normal use |
|
Payment |
T/T or L/C at sight |
|
Country of Origin |
China |
|

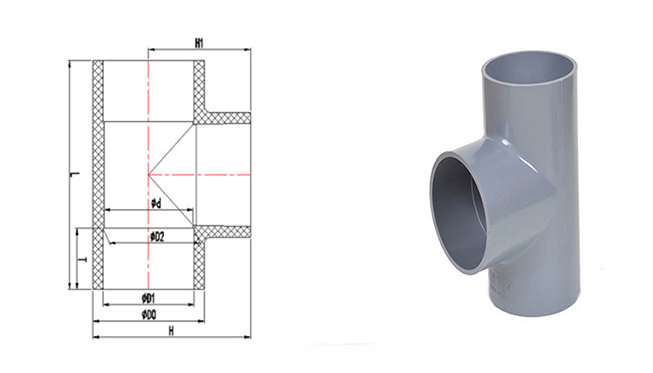

DN(mm) |
D0 |
D1 |
D2 |
d |
T |
H1 |
H |
L |
|
20 |
24.80 |
20.24 |
19.96 |
19.00 |
17.00 |
28.50 |
40.90 |
57.00 |
|
25 |
30.10 |
25.24 |
24.95 |
24.00 |
19.50 |
33.50 |
48.55 |
67.00 |
|
32 |
37.50 |
32.25 |
31.95 |
31.00 |
23.00 |
40.50 |
59.25 |
81.00 |
|
40 |
46.48 |
40.28 |
39.95 |
39.00 |
27.00 |
48.50 |
71.74 |
95.60 |
|
50 |
57.30 |
50.33 |
49.94 |
49.00 |
32.00 |
58.50 |
87.15 |
117.50 |
|
63 |
70.50 |
63.34 |
62.93 |
62.00 |
38.50 |
71.50 |
106.75 |
142.70 |
|
75 |
84.00 |
75.35 |
74.93 |
73.50 |
44.50 |
83.25 |
125.25 |
166.50 |
|
90 |
100.60 |
90.38 |
89.93 |
88.50 |
52.00 |
98.25 |
148.55 |
203.00 |
|
110 |
120.80 |
110.42 |
109.92 |
108.00 |
62.00 |
118.00 |
178.40 |
237.00 |
|
125 |
136.80 |
125.52 |
124.93 |
123.00 |
69.50 |
118.50 |
186.90 |
267.00 |
|
140 |
153.50 |
140.58 |
139.88 |
138.00 |
77.00 |
149.00 |
225.75 |
298.00 |
|
160 |
175.00 |
160.62 |
159.87 |
158.00 |
87.00 |
169.00 |
256.50 |
338.50 |
|
180 |
202.60 |
180.81 |
179.91 |
178.50 |
97.00 |
190.00 |
291.30 |
379.00 |
|
200 |
219.00 |
200.90 |
199.85 |
197.00 |
107.00 |
211.00 |
320.50 |
420.00 |
|
225 |
246.00 |
226.02 |
224.83 |
221.00 |
119.50 |
235.50 |
358.50 |
474.00 |
|
250 |
272.00 |
251.15 |
249.41 |
247.00 |
132.00 |
261.00 |
397.00 |
522.00 |
|
280 |
314.80 |
281.46 |
280.16 |
278.00 |
147.00 |
276.00 |
433.40 |
552.00 |
|
315 |
344.50 |
316.55 |
315.05 |
312.00 |
165.00 |
326.50 |
498.75 |
653.00 |
|
355 |
385.80 |
356.63 |
355.03 |
326.00 |
183.50 |
368.25 |
561.15 |
736.50 |
|
400 |
433.70 |
401.60 |
400.00 |
398.50 |
208.00 |
413.00 |
629.85 |
826.00 |
Note: Special sizes are available upon request. Please contact us for more product information and quotations.

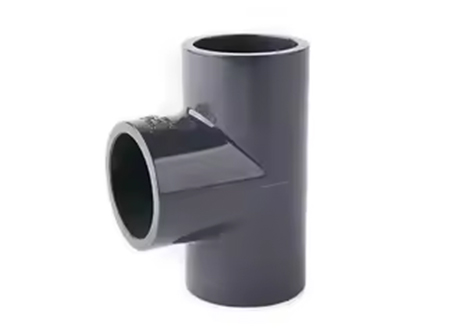

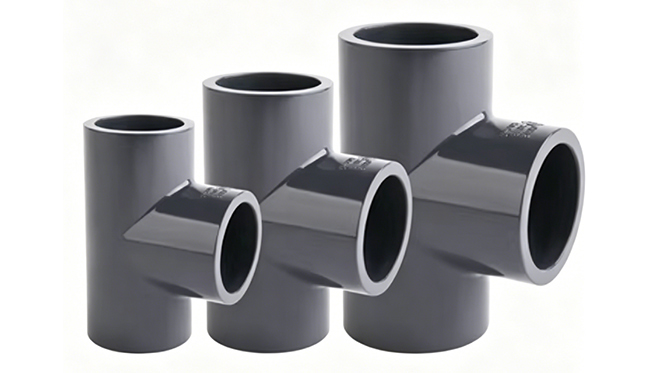

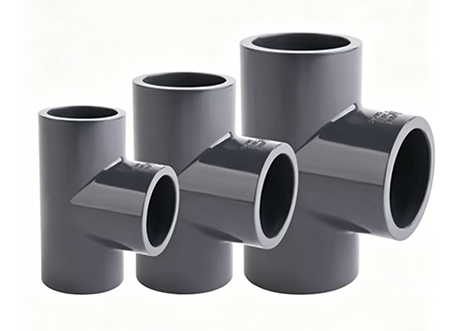

PVC Equal Tee has three identical ports with the same diameter for main and branch pipes. According to structure, it can be divided into straight tee and lateral tee. It is widely used in various fluid systems to ensure smooth flow and distribution. With excellent corrosion resistance, pressure resistance and cost efficiency, it is widely applied in industrial, agricultural and construction fields.
Connection and DiversionIn pipeline systems, PVC Equal Tee connects multiple pipelines and realizes fluid splitting or merging to meet multi-path transmission and distribution requirements.
Flow Direction ChangeIt can flexibly change fluid direction according to layout needs, adapting to complex pipeline designs and improving system rationality.
System StabilityAs a key component, it effectively manages fluid flow, improves safety and stability, enhances transmission efficiency, and reduces energy consumption and maintenance costs.
