Injection molded one-piece HDPE fittings designed for HDPE piping systems, available in sizes from 63–800 mm. SDR11 and SDR17 pressure ratings available. Backed by a 15-year warranty, with competitive wholesale pricing, standard sizes in stock, and fast delivery. For more details, quotations, or customization, please feel free to contact us.
WhatsApp: 8615515833787 WeChat: 15515833787Size: DN75–800 mm (customizable available)
Pressure Rating: SDR11-PN16 bar, SDR13.6-PN12.5 bar, SDR17-PN10 bar, SDR21-PN6 bar, SDR26-PN6 bar
Raw Materials: High-quality virgin PE80 / PE100, non-toxic and odorless, compliant with green building material standards
Supply Capacity: 3 × 40 ft containers per week, ensuring stable bulk supply capability
Certifications: ISO 14001, ISO 9001, OHSAS 18001, CE, BS EN 12001 fully certified

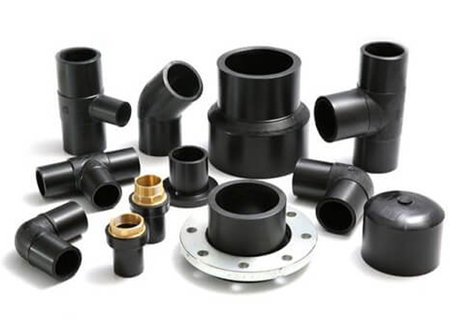

We supply a full range of HDPE butt fusion fittings from DN75mm to DN630mm, including flanges, tees, ball valves, elbows, and other types. Customization is available upon request. All products are made from high-quality PE80/PE100 raw materials, suitable for water, oil, and gas pipeline systems. Fully compliant with international standards, with competitive pricing for bulk orders.
|
Product Name |

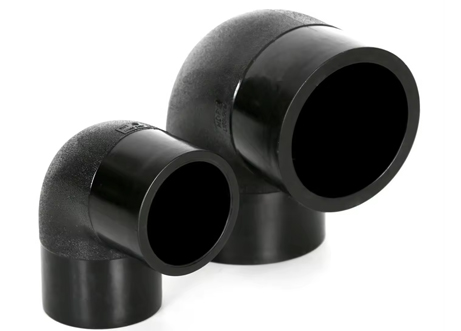

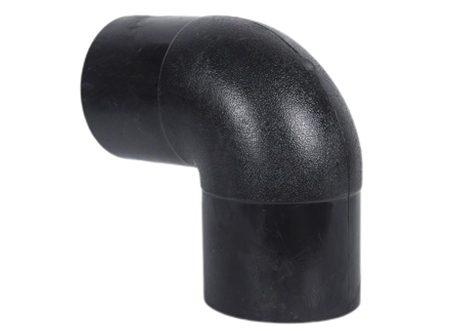

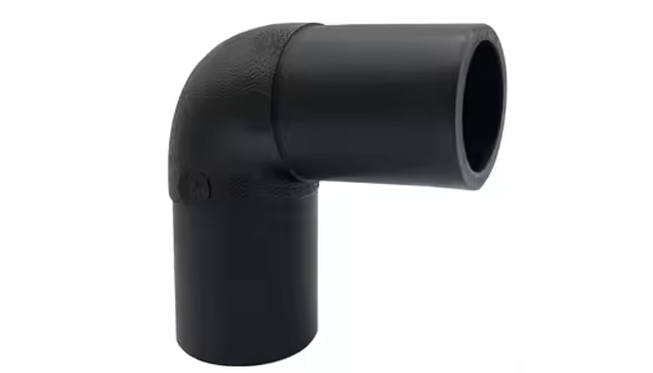

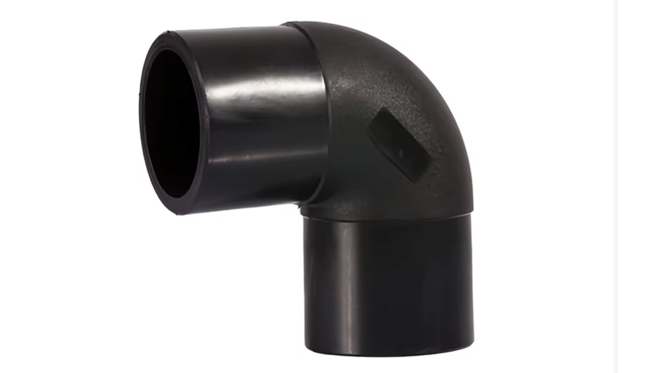

HDPE Butt Fusion 90-Degree Elbow |
|
Optional Sizes |
DN75-800mm (Customizable) |
|
SDR Rating |
SDR11, SDR13.6, SDR17, SDR21, SDR26, SDR33, SDR41 |
|
Raw Materials |
High-quality new PE80 or PE100 |
|
Optional Colors |
Black, Blue, customizable |
|
Implementation Standards |
ISO4427/ AS/ NZS 4130/ BS EN 12201/ SABS |
|
Sample Provision |
Free samples available |

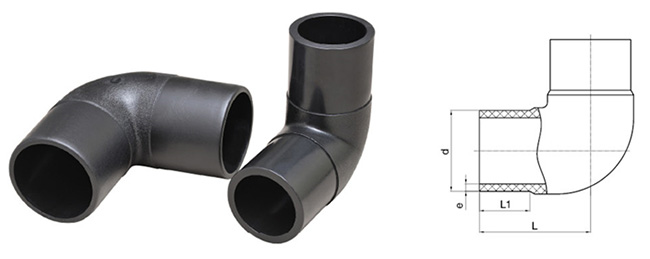

Detailed Specification Parameters
| d | e(SDR11) | e(SDR17) | L | L1 |
| 63 | 5.8 | － | 117 | 64 |
| 90 | 8.2 | 5.4 | 145 | 80 |
| 110 | 10 | 6.6 | 154 | 84 |
| 160 | 14.6 | 9.5 | 206 | 99 |
| 200 | 18.2 | 11.9 | 231 | 114 |
| 225 | 20.5 | 13.4 | 255 | 121 |
| 250 | 22.7 | 14.8 | 279 | 131 |
| 315 | 28.6 | 18.7 | 336 | 152 |
| 355 | 32.2 | 21.1 | 373 | 167 |
| 400 | 36.4 | 23.7 | 480 | 275 |
| 450 | 40.9 | 25.6 | 525 | 285 |
Please send your inquiries to the following email address:sales@mfgpipe.com;whatsapp:+86 15515833787 (We will respond to you within 24 hours).
Seamless Fusion Joint: Hot-melt fusion creates an integrated connection with the pipe body, ensuring leak-free, vibration-resistant, and load-resistant performance.
Excellent Corrosion Resistance: HDPE material resists chemical corrosion, does not rust or rot, and prevents microbial growth.
Lightweight & Easy Installation: Low weight and corrosion resistance allow quick installation and disassembly, reducing construction time.
Wide Application: Suitable for drainage, wastewater treatment, and potable water systems, with easy maintenance.
Eco-Friendly & Safe: Non-toxic green material, scale-resistant, and reusable fittings.
High Durability: Elongation at break ≥ 500%, excellent crack resistance and seismic performance, suitable for ground settlement, with a service life of over 70 years.
Cost-Effective: Low flow resistance reduces system and maintenance costs, with better pricing for bulk orders.
