Henan Lukuang Trading Co., Ltd. specializes in PVC ventilation pipes and fittings. Our products comply with international standards including BS EN ISO 1452, ISO 3633, and AS/NZS standards, with CE certification and BS6920 test approval. Reliable quality, competitive pricing, and suitable for various ventilation applications.
Contact us for product details, customized solutions, and quotations.
WhatsApp: 8615515833787 WeChat: 15515833787Size: DN20–1200mm, customizable to meet different ventilation requirements
Pressure Rating: 4 bar, 6 bar, 9 bar, 12 bar, 16 bar, 20 bar, and 25 bar for various working conditions
Service Life: Up to 70 years under normal operating conditions, durable and cost-effective
Material: High-quality PVC raw material with excellent physical properties and strong chemical stability
Color: Standard black, customizable colors available upon request
Standards: Manufactured in strict accordance with BS EN ISO 1452, ISO 3633, and AS/NZS standards
Certifications: CE, ISO 9001, ISO 14001, and OHSAS 18001 certified for reliable quality assurance

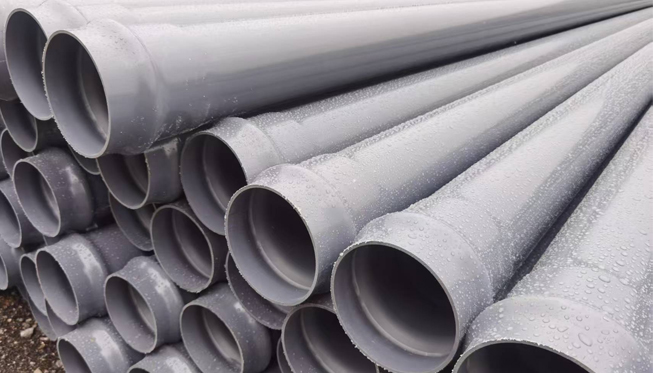

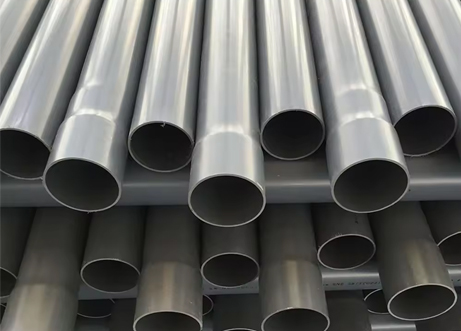

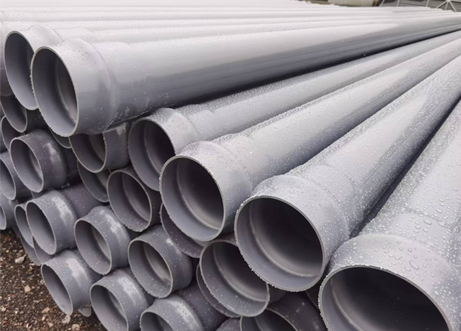

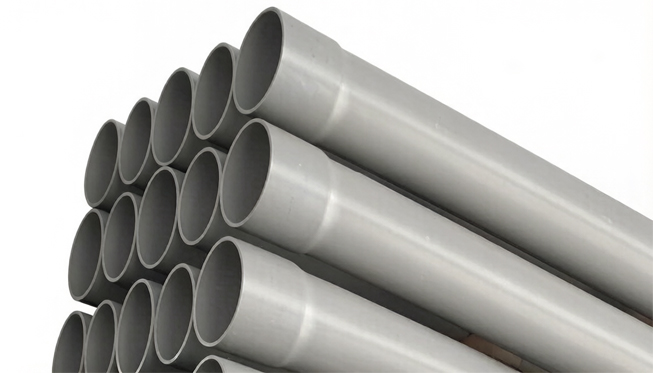

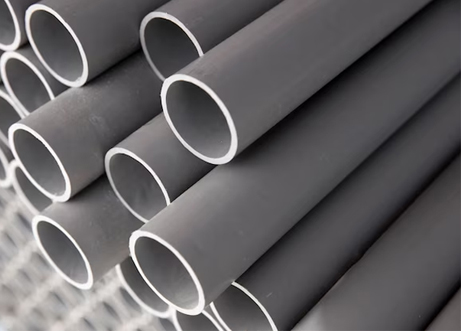

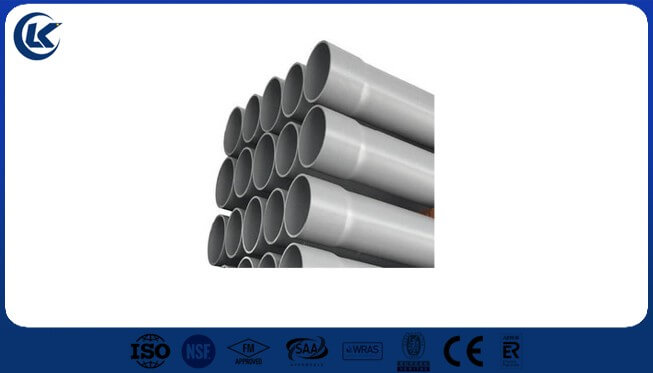

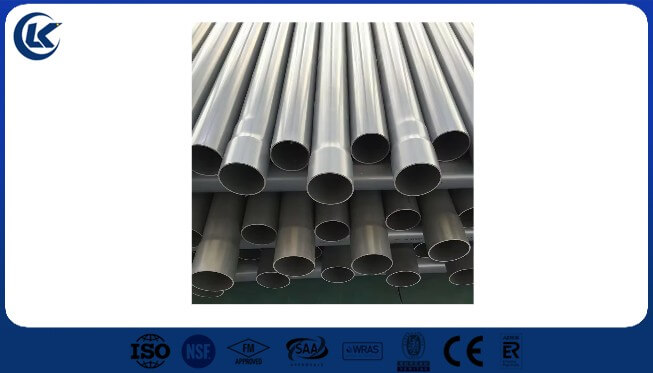

Henan Lukuang Trading PVC ventilation pipes are manufactured from high-quality PVC raw materials in strict accordance with international standards. Combined with matching PVC fittings, they provide a complete and reliable ventilation system solution.
The products feature excellent physical performance, strong chemical stability, smooth inner surfaces, flexibility, pressure resistance, and corrosion resistance. They are widely used in construction projects, tunnels, basements, and large public buildings for ventilation, smoke exhaust, air circulation, and the transportation of dust, powder, gas, and liquid media.
|
Name |
PVC ventilation pipe |
|
Size |
DN20-1200mm |
|
Pressure Class |
4, 6, 9, 12, 16,20, and 25 Bar |
|
Material |
PVC |
|
Colors |
Black, or as per request |
|
Standard |
BS EN ISO1452 /ISO3633 |
|
Remarks |
Customers’ logo available |
|
Sample |
Samples are available |
|
Packing |
Pipe length of 6 meters or 12 meters, or the length can be customized according to the customer's requirements on the premise of convenient transportation. |
|
MOQ |
Negotiable |
|
Production |
Depending on the order quantities. 20 ft: 7-10 days，40 ft: 15-20 days |
|
Certification |
CE Certification, ISO9001, ISO14001, OHSAS 18001 |
|
Warranty |
30 years for normal using |
|
Payment Term |
T/T or L/C at sight |
|
Country of Original |
China |
|
Nominal Size |
Outside Diameter (mm) |
Wall Thickness (mm) |
||||||||||||||
|
(mm) |
Class 4 |
Class 6 |
Class 9 |
Class 12 |
Class 16 |
Class 20 |
Class 25 |
|||||||||
|
|
PN4 |
PN6.3 |
PN10 |
PN12.5 |
PN16 |
PN20 |
PN25 |
|||||||||
|
|
Min |
Max |
Min |
Max |
Min |
Max |
Min |
Max |
Min |
Max |
Min |
Max |
Min |
Max |
Min |
Max |
|
16 |
16.0 |
16.3 |
|
|
|
|
|
|
|
|
|
|
1.5 |
1.9 |
|
|
|
20 |
20.0 |
20.3 |
|
|
|
|
|
|
|
|
1.5 |
1.9 |
1.9 |
2.3 |
|
|
|
25 |
25.0 |
25.3 |
|
|
|
|
|
|
1.5 |
1.9 |
1.9 |
2.3 |
2.3 |
2.8 |
|
|
|
32 |
32.0 |
32.3 |
|
|
|
|
1.5 |
1.9 |
1.8 |
2.2 |
2.4 |
2.9 |
2.9 |
3.4 |
|
|
|
40 |
40.0 |
40.3 |
|
|
1.5 |
1.9 |
1.8 |
2.2 |
2.3 |
2.8 |
3.0 |
3.5 |
3.7 |
4.3 |
|
|
|
50 |
50.0 |
50.3 |
|
|
1.8 |
2.2 |
2.2 |
2.7 |
2.8 |
3.3 |
3.7 |
4.3 |
4.6 |
5.3 |
|
|
|
63 |
63.0 |
63.3 |
|
|
1.9 |
2.3 |
2.7 |
3.2 |
3.6 |
4.2 |
4.7 |
5.5 |
5.8 |
6.7 |
|
|
|
75 |
75.0 |
75.3 |
1.5 |
1.9 |
2.2 |
2.7 |
3.2 |
3.8 |
4.8 |
5.0 |
5.6 |
6.5 |
6.9 |
8.0 |
|
|
|
90 |
90.0 |
90.3 |
1.8 |
2.2 |
2.7 |
3.1 |
3.9 |
4.5 |
5.1 |
5.9 |
6.7 |
7.8 |
8.2 |
9.5 |
|
|
|
110 |
110.0 |
110.4 |
1.8 |
2.2 |
2.6 |
3.1 |
3.9 |
4.5 |
5.1 |
5.9 |
6.7 |
7.8 |
8.2 |
9.5 |
10.0 |
11.5 |
|
125 |
125.0 |
125.4 |
2.0 |
2.4 |
3.0 |
3.5 |
4.4 |
5.1 |
5.8 |
6.7 |
7.6 |
8.8 |
9.3 |
10.8 |
11.4 |
13.1 |
|
140 |
140.0 |
140.5 |
2.3 |
2.6 |
3.3 |
3.9 |
4.9 |
5.7 |
6.5 |
7.5 |
8.5 |
9.8 |
10.4 |
12.0 |
12.7 |
14.6 |
|
160 |
160.0 |
160.5 |
2.6 |
3.1 |
3.8 |
4.4 |
5.6 |
6.5 |
7.4 |
8.6 |
9.7 |
11.2 |
11.9 |
13.7 |
14.6 |
16.8 |
|
180 |
180.0 |
180.6 |
2.9 |
3.4 |
4.2 |
4.9 |
6.3 |
7.3 |
8.3 |
9.6 |
10.9 |
12.6 |
13.4 |
15.5 |
16.4 |
18.9 |
|
200 |
200.0 |
200.6 |
3.1 |
3.7 |
4.7 |
5.3 |
7.0 |
8.1 |
9.2 |
10.6 |
12.1 |
14.0 |
14.9 |
17.2 |
18.2 |
20.9 |
|
225 |
225.0 |
225.7 |
3.5 |
4.1 |
5.2 |
6.0 |
7.9 |
9.1 |
10.3 |
11.9 |
13.6 |
16.7 |
16.7 |
19.3 |
20.5 |
23.6 |
|
250 |
250.0 |
250.8 |
3.9 |
4.5 |
5.9 |
6.8 |
8.7 |
10.1 |
11.5 |
13.3 |
15.1 |
17.4 |
18.6 |
21.4 |
22.7 |
26.1 |
|
280 |
280.0 |
280.9 |
4.4 |
5.1 |
6.6 |
7.6 |
9.8 |
11.5 |
12.9 |
14.9 |
16.9 |
19.5 |
|
|
|
|
|
315 |
315.0 |
316.0 |
5.0 |
5.8 |
7.4 |
8.6 |
11.0 |
12.7 |
14.5 |
16.7 |
19.0 |
21.9 |
|
|
|
|
|
355 |
355.0 |
356.0 |
5.3 |
6.5 |
8.4 |
9.7 |
12.4 |
14.3 |
16.3 |
18.8 |
21.4 |
24.7 |
|
|
|
|
|
400 |
400.0 |
401.0 |
6.3 |
7.3 |
9.4 |
10.9 |
14.0 |
16.1 |
18.4 |
21.2 |
24.1 |
27.6 |
|
|
|
|
|
450 |
450.0 |
451.0 |
7.1 |
8.2 |
10.6 |
12.2 |
15.7 |
18.1 |
20.7 |
23.9 |
|
|
|
|
|
|
|
500 |
500.0 |
501.0 |
7.9 |
9.1 |
11.8 |
13.6 |
17.4 |
20.1 |
22.9 |
26.5 |
|
|
|
|
|
|
|
550 |
560.0 |
561.0 |
8.8 |
10.2 |
13.2 |
15.2 |
19.5 |
22.5 |
|
|
|
|
|
|
|
|
|
630 |
630.0 |
631.0 |
10.0 |
11.5 |
14.8 |
17.1 |
21.9 |
25.3 |
|
|
|
|
|
|
|
|
Note: If you have specific requirements regarding product specifications, we can provide customized solutions tailored to your needs. For further product details and quotation information, please contact us.
Please send an email to sales@mfgpipe.com or reach out via WhatsApp at +86 15515833787; we will respond within 24 hours.
✔Cost-Effective: Lower material cost than metal pipes, offering excellent value for ventilation projects.
✔Lightweight & Easy Installation:Easy to transport and install, reducing labor time and installation costs.
✔Corrosion Resistant & Durable:Resistant to acids, alkalis, moisture, and chemicals, with a service life of up to 70 years.
✔Reliable Performance:Smooth inner surface, strong sealing performance, flexible and impact-resistant for stable airflow.
✔Customizable Options:Available in various sizes, colors, and pressure ratings for different working environments.
