Henan Lukuang Trade's HDPE irrigation pipes comply with ISO 4427, AS/NZS 4130, BS EN 12201 and SABS standards, available in black and blue. Certified with CE and ISO 9001 quality management system, we provide complete matching fittings. For more information about Henan Lukuang Trade's HDPE irrigation pipes, please contact us!
WhatsApp: 86 15515833787 WeChat: 15515833787Raw Materials: High-quality PE80, PE100, PE4710 grade high-density polyethylene (HDPE), with high-quality virgin PE100 resin as the main raw material, ensuring the stability and durability of the irrigation pipes.

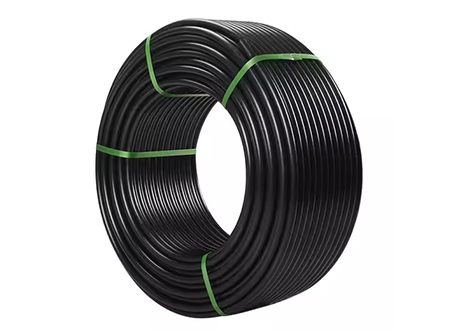

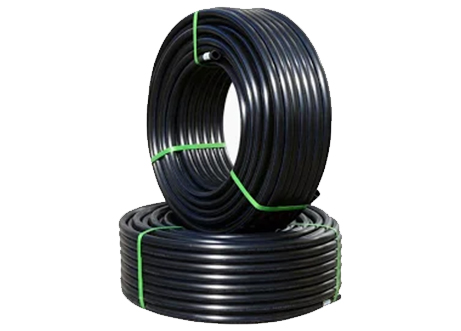

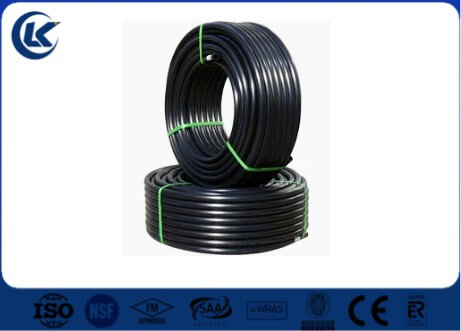

Size Range: Nominal diameter DN16-1600mm (customizable); pipes with diameter less than 110mm can be coiled into rolls; single length of pipes with diameter greater than 110mm is 5.8 meters or 11.8 meters.
Pressure Rating: SDR 6-PN 32 bar, SDR 7.4-PN 25 bar, SDR 9-PN 20 bar, SDR11-PN 16 bar, SDR13.6-PN 12.5 bar, SDR17-PN 10 bar, SDR21-PN 6 bar, SDR26-PN 6 bar, SDR33-PN 5 bar, SDR41-PN 4 bar, suitable for pressure requirements of various irrigation scenarios.
Service Life: 70 years under normal use; pipes containing uniformly distributed carbon black can be used outdoors for 50 years without UV damage, and their wear resistance is 4 times that of steel pipes.
Additional Features: Color can be black with blue stripes or customized on demand; OEM orders are accepted, and customer logos can be printed on the pipes; no heavy metal stabilizers are added during processing, which is non-toxic, harmless, recyclable and environmentally friendly.

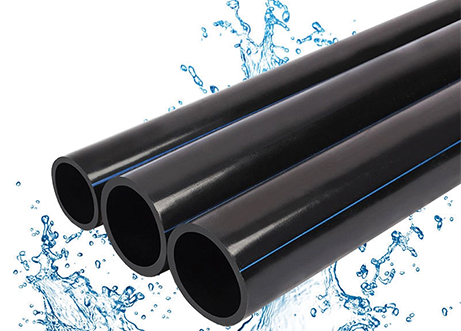

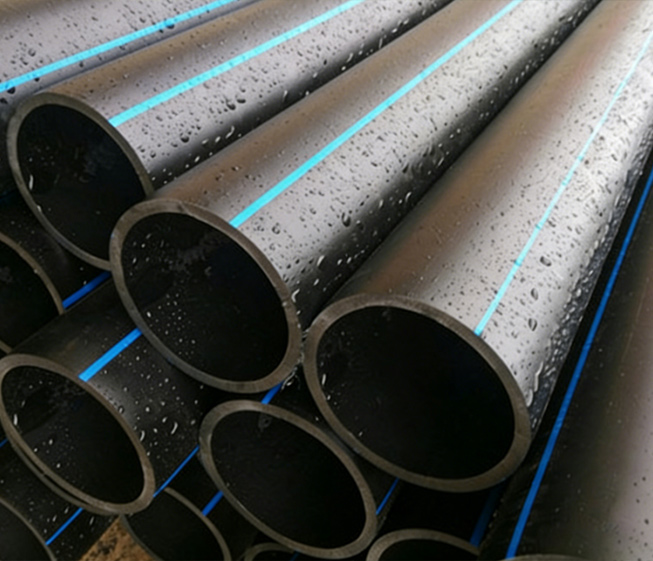

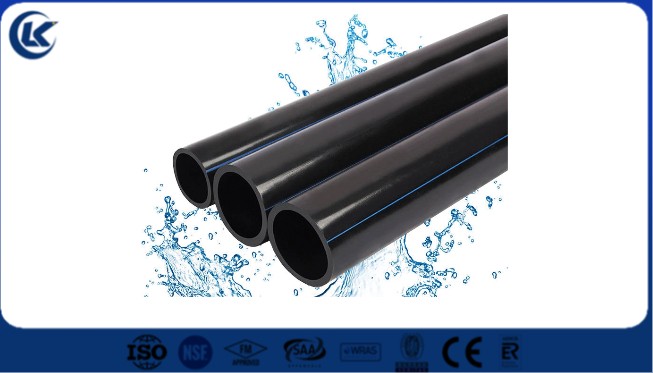

HDPE irrigation pipes are new-type plastic irrigation pipes made of high-density polyethylene (HDPE) material. HDPE is a high-crystallinity, non-polar thermoplastic resin, which is milky white in its original state and has a certain translucency in thin sections. Henan Lukuang Trade's HDPE irrigation pipes strictly follow international standards and hold full certifications including ISO 14001, ISO 9001, OHSAS 18001, CE, BS EN 12201 and WRAS, ensuring that the product quality meets the standards and complies with the safety requirements for irrigation engineering.
The products are molded through processes such as extrusion, sizing, cooling and cutting, with good corrosion resistance, excellent impact resistance, seismic performance and good environmental performance. They can adapt to various farmland irrigation environments without additional anti-corrosion equipment, replace traditional irrigation pipes, and have outstanding cost performance. The inner and outer walls of the pipes are smooth, without protrusions or depressions, and have strong liquid transportation capacity, which is 0.6-0.7 times that of galvanized iron pipe systems of the same diameter. It can effectively reduce water flow resistance, reduce pipe pressure loss and water transmission energy consumption, and meet the core needs of farmland irrigation.
Environmentally Friendly: Hygienic and non-toxic, no heavy metal stabilizers are added during processing, no scale, algae growth and other microorganisms will be generated during use, and no secondary pollution will be caused to water quality; HDPE material can be recycled and reused, which conforms to the national environmental protection concept.
Strong Corrosion Resistance: It has extremely high corrosion resistance, can resist the corrosion of various chemical liquids without additional anti-corrosion equipment, and is suitable for various water quality environments in farmland.
Impact and Seismic Resistance: It can maintain an extremely low brittle temperature even at low temperatures, with excellent impact and seismic performance, can adapt to uneven foundation settlement, and reduce the risk of brittle cracking of pipes during winter construction.

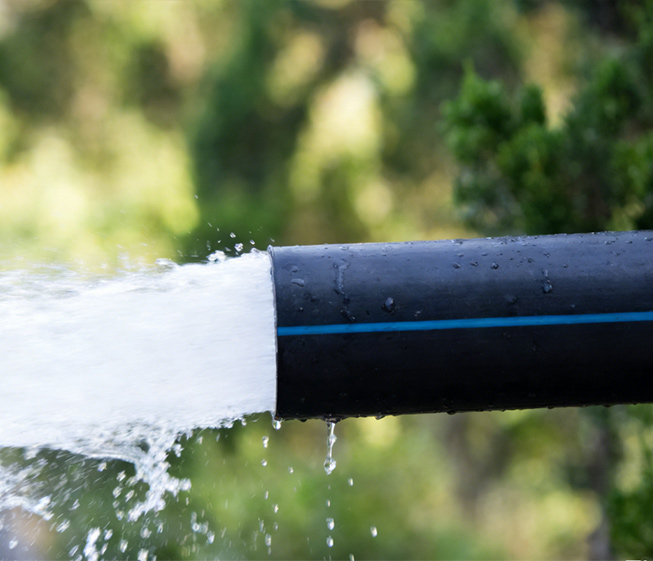

Low Water Flow Resistance: The inner wall is smooth and non-sticky, which effectively reduces water flow resistance, improves transportation capacity, and reduces water transmission energy consumption and pipe pressure loss.
Safe and Reliable Connection: Adopting hot-melt or electro-fusion connection, the interface has strong consistency with the pipe material, which can effectively resist internal pressure and axial stress, with excellent sealing performance and eliminate leakage hazards.
Outstanding Durability: Adding uniformly distributed carbon black, it has strong UV resistance and can be used outdoors for 50 years without damage; its wear resistance is 4 times that of steel pipes, with a service life of up to 70 years, which is more economical and practical.
Excellent Flexibility: The pipe can be bent flexibly, reducing the number of pipe fittings and installation costs, and adapting to the laying needs of complex terrains.
Convenient Construction: Light in weight, only 1/8 of traditional pipes, easy to carry, transport and install, reducing the demand for manpower and equipment, lowering the labor intensity of construction and improving construction efficiency.
Attractive Appearance: Soft and beautiful color, smooth and clean inner and outer walls, no protrusions or depressions, combining practicality and aesthetics.
|
Product Name |
HDPE Irrigation Pipes |
|
Brand |
Henan Lukuang Trade |
|
Raw Materials |
PE80, PE100, PE4710 (mainly virgin PE100) |
|
Color Options |
Black, Blue, Black with Blue Stripes, customizable on demand |
|
Executive Standards |
ISO4427/AS/NZS 4130/BS EN 12201/SABS Standards |
|
Customization Service |
Support custom special specifications, accept OEM orders, and print customer logos |
|
Sample Supply |
Free samples available |
|
Packaging Standard |
Standard export packaging; <110mm in coils, >110mm in 5.8m/11.8m single lengths |
|
Minimum Order Quantity |
Negotiable |
|
Production Cycle |
20ft container: 7-10 days; 40ft container: 15-20 days (depending on order quantity) |
|
Certifications |
ISO 14001, ISO 9001, OHSAS 18001, CE, BS EN 12201, WRAS Certifications |
|
Warranty Period |
30 years under normal use |
|
Payment Terms |
Telegraphic Transfer (T/T) or Letter of Credit (L/C) at Sight |
|
FOB Port |
Chongqing, Qingdao, Tianjin, Shanghai, etc. |
|
Country of Origin |
China |

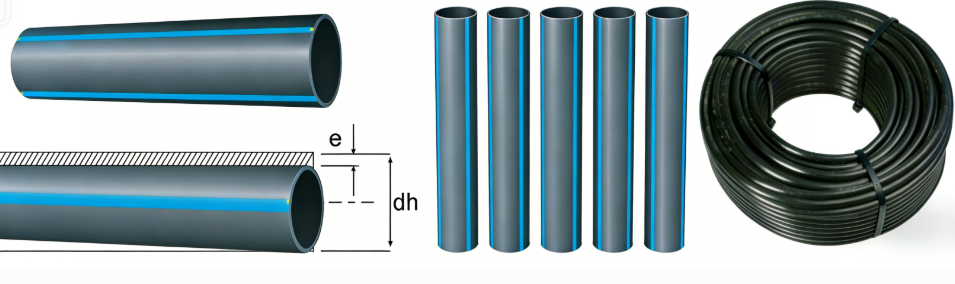

| SDR41 PN4 | SDR33 PN5 | SDR26 PN6 | SDR21 PN8 | SDR17 PN10 | SDR13.6 PN12.5 | SDR11 PN16 | SDR9 PN20 | SDR7.4 PN25 | SDR6 PN32 | |||||||||||
| DN (mm) | W.T. (mm) | G.W. (kg/m) | W.T. (mm) | G.W. (kg/m) | W.T. (mm) | G.W. (kg/m) | W.T. (mm) | G.W. (kg/m) | W.T. (mm) | G.W. (kg/m) | W.T. (mm) | G.W. (kg/m) | W.T. (mm) | G.W. (kg/m) | W.T. (mm) | G.W. (kg/m) | W.T. (mm) | G.W. (kg/m) | W.T. (mm) | G.W. (kg/m) |
| 16 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 3 | 0.12 |
| 20 | - | - | - | - | - | - | 1 | 0.06 | 1.2 | 0.07 | 1.5 | 0.09 | 2 | 0.11 | 2.3 | 0.13 | 3 | 0.16 | 3.4 | 0.18 |
| 25 | - | - | - | - | - | - | 1.2 | 0.09 | 1.5 | 0.12 | 2 | 0.15 | 2.3 | 0.16 | 3 | 0.21 | 3.5 | 0.24 | 4.2 | 0.28 |
| 32 | - | - | - | - | - | - | 1.5 | 0.15 | 2 | 0.19 | 2.4 | 0.24 | 3 | 0.27 | 3.6 | 0.32 | 4.4 | 0.38 | 5.4 | 0.45 |
| 40 | - | - | - | - | - | - | 2 | 0.26 | 2.4 | 0.29 | 3 | 0.36 | 3.7 | 0.42 | 4.5 | 0.5 | 5.5 | 0.6 | 6.7 | 0.7 |
| 50 | - | - | - | - | 1.8 | 0.29 | 2.4 | 0.36 | 3 | 0.45 | 3.7 | 0.54 | 4.6 | 0.66 | 5.6 | 0.78 | 6.9 | 0.93 | 8.3 | 1.08 |
| 63 | 1.8 | 0.36 | 2 | 0.39 | 2.4 | 0.47 | 3 | 0.57 | 3.8 | 0.71 | 4.7 | 0.87 | 5.8 | 1.04 | 7.1 | 1.25 | 8.6 | 1.46 | 10.3 | 1.69 |
| 75 | 1.9 | 0.45 | 2.3 | 0.54 | 2.7 | 0.63 | 3.6 | 0.81 | 4.5 | 1.01 | 5.6 | 1.23 | 6.8 | 1.46 | 8.4 | 1.75 | 10.3 | 2.08 | 12.5 | 2.43 |
| 90 | 2.3 | 0.64 | 2.8 | 0.78 | 3.3 | 0.93 | 4.3 | 1.16 | 5.4 | 1.45 | 6.7 | 1.76 | 8.2 | 2.11 | 10.1 | 2.53 | 12.3 | 2.99 | 15 | 3.51 |
| 110 | 2.7 | 0.93 | 3.4 | 1.16 | 4 | 1.37 | 5.3 | 1.74 | 6.6 | 2.15 | 8.1 | 2.6 | 10 | 3.13 | 12.3 | 3.76 | 15.1 | 4.47 | 18.3 | 5.22 |
| 125 | 3.1 | 1.22 | 3.9 | 1.5 | 4.5 | 1.74 | 6 | 2.25 | 7.4 | 2.74 | 9.2 | 3.35 | 11.4 | 4.06 | 14 | 4.87 | 17.1 | 5.76 | 20.8 | 6.74 |
| 140 | 3.5 | 1.52 | 4.3 | 1.86 | 5.1 | 2.21 | 6.7 | 2.81 | 8.3 | 3.44 | 10.3 | 4.2 | 12.7 | 5.06 | 15.7 | 6.09 | 19.2 | 7.23 | 23.3 | 8.45 |
| 160 | 4 | 1.97 | 4.9 | 2.4 | 5.8 | 2.87 | 7.7 | 3.69 | 9.5 | 4.5 | 11.8 | 5.48 | 14.6 | 6.64 | 17.9 | 7.94 | 21.9 | 9.42 | 26.6 | 11.03 |
| 180 | 4.4 | 2.46 | 5.5 | 3.04 | 6.5 | 3.61 | 8.6 | 4.64 | 10.7 | 5.69 | 13.3 | 6.96 | 16.4 | 8.4 | 20.1 | 10.04 | 24.6 | 11.91 | 29.9 | 13.94 |
| 200 | 4.9 | 3.02 | 6.2 | 3.81 | 7.2 | 4.44 | 9.6 | 5.75 | 11.9 | 7.02 | 14.7 | 8.53 | 18.2 | 10.36 | 22.4 | 12.42 | 27.4 | 14.73 | 33.2 | 17.21 |
| 225 | 5.5 | 3.82 | 6.9 | 4.74 | 8.1 | 5.68 | 10.8 | 7.26 | 13.4 | 8.9 | 16.6 | 10.83 | 20.3 | 13 | 25.2 | 15.72 | 30.8 | 18.61 | 37.4 | 21.79 |
| 250 | 6.2 | 4.79 | 7.7 | 5.88 | 9.1 | 6.99 | 11.9 | 8.89 | 14.8 | 10.91 | 18.4 | 13.34 | 22.7 | 16.12 | 27.9 | 19.32 | 34.2 | 22.98 | 41.5 | 26.87 |
| 280 | 6.9 | 5.94 | 8.6 | 7.35 | 10.1 | 8.71 | 13.4 | 11.18 | 16.6 | 13.7 | 20.6 | 16.72 | 25.4 | 20.21 | 31.3 | 24.28 | 38.3 | 28.82 | 46.5 | 33.71 |
| 315 | 7.7 | 7.46 | 9.7 | 9.32 | 11.4 | 11.02 | 15 | 14.1 | 18.7 | 17.35 | 23.2 | 21.19 | 28.6 | 25.58 | 35.2 | 30.72 | 43.1 | 36.48 | 52.3 | 42.66 |
| 355 | 8.7 | 9.49 | 10.9 | 11.78 | 12.9 | 14.05 | 16.9 | 17.86 | 21.1 | 22.09 | 26.1 | 26.87 | 32.2 | 32.47 | 39.7 | 39.01 | 48.5 | 46.25 | 59 | 54.19 |
| 400 | 9.8 | 12.03 | 12.3 | 15.01 | 14.5 | 17.83 | 19.1 | 22.72 | 23.7 | 27.91 | 29.4 | 34.07 | 36.3 | 41.23 | 44.7 | 49.49 | 54.7 | 58.75 | 66.7 | 68.95 |
| 450 | 11 | 15.17 | 13.8 | 18.9 | 16.3 | 22.52 | 21.5 | 28.81 | 26.7 | 35.36 | 33.1 | 43.16 | 40.9 | 52.21 | 50.3 | 62.66 | 61.5 | 74.32 | - | - |
| 500 | 12.3 | 18.89 | 15.3 | 23.31 | 18.1 | 27.74 | 23.9 | 35.56 | 29.7 | 43.7 | 36.8 | 53.25 | 45.4 | 64.42 | 55.8 | 77.22 | 67.7 | 97.19 | - | - |
| 560 | 13.7 | 23.52 | 17.2 | 29.34 | 20.3 | 34.84 | 26.7 | 44.51 | 33.2 | 54.74 | 41.2 | 66.81 | 50.8 | 80.7 | 62.2 | 96.43 | 75.7 | 121.9 | - | - |
| 630 | 15.4 | 29.75 | 19.3 | 37.01 | 22.8 | 43.99 | 30 | 56.24 | 37.4 | 69.33 | 46.3 | 84.75 | 57.2 | 102.25 | 70.3 | 125.86 | 85.1 | 154.82 | - | - |
| 710 | 17.4 | 37.86 | 21.8 | 47.04 | 25.7 | 55.89 | 33.9 | 71.52 | 42.1 | 87.97 | 52.2 | 107.28 | 64.5 | 129.97 | 79.3 | 161.88 | 95.9 | 195.82 | - | - |
| 800 | 19.6 | 48.01 | 24.5 | 59.58 | 29 | 71.11 | 38.1 | 90.58 | 47.4 | 111.55 | 58.8 | 136.09 | 72.6 | 175.59 | 89.3 | 210.68 | - | - | - | - |
| 900 | 22 | 60.55 | 27.6 | 75.47 | 32.6 | 89.82 | 42.9 | 114.77 | 53.3 | 141.11 | 66.2 | 172.29 | 81.7 | 222.3 | - | - | - | - | - | - |
| 1000 | 24.5 | 74.98 | 30.6 | 92.96 | 36.2 | 110.84 | 47.7 | 141.83 | 59.3 | 174.39 | 73.5 | 212.64 | 90.2 | 272.87 | - | - | - | - | - | - |
| 1200 | 29.4 | 107.97 | 36.7 | 133.73 | 43.5 | 159.84 | 57.2 | 203.39 | 70.6 | 248.56 | 88.2 | 326.06 | - | - | - | - | - | - | - | - |
| 1400 | 34.3 | 146.87 | 42.9 | 182.28 | 50.7 | 217.01 | 66.7 | 276.21 | 82.4 | 337.82 | 102.9 | 443.8 | - | - | - | - | - | - | - | - |
| 1600 | 39.2 | 191.8 | 49 | 237.89 | 58 | 283.79 | 76.2 | 360.37 | 94.1 | 440.55 | - | - | - | - | - | - | - | - | - | - |
Note: Special specifications can be customized. Please contact us for more product information and prices, and send your request to the email address: (we will reply to you within 24 hours).
As a new-type plastic pipe product, it is mainly used for farmland irrigation, and can also be adapted to various agricultural irrigation-related scenarios, including:
Farmland Irrigation: Irrigation and water transmission in various crop planting areas, suitable for different terrains such as plains and hills;

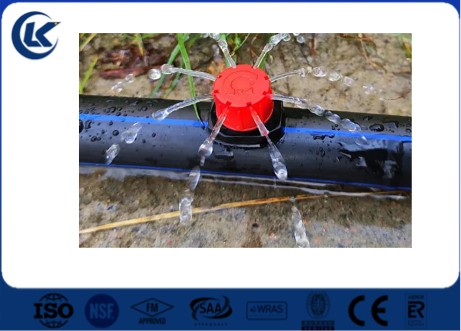

Orchard Irrigation: Precise water transmission in economic crop planting areas such as orchards and tea gardens to ensure uniform irrigation;
Forest Irrigation: Irrigation in green planting areas such as woodlands and nurseries, suitable for water transmission needs in complex terrains;
Other Scenarios: Various agricultural irrigation supporting projects such as agricultural parks and greenhouse planting.
With the advantages of environmental protection, durability and convenient construction, Henan Lukuang Trade's HDPE irrigation pipes have become the preferred product for agricultural irrigation projects. They not only reduce construction and use costs, but also conform to the national concept of efficient environmental protection, helping the development of green agriculture.
For specification parameters, product quotes, free samples or customized solutions, please feel free to contact us at any time, and we will provide you with professional support!
