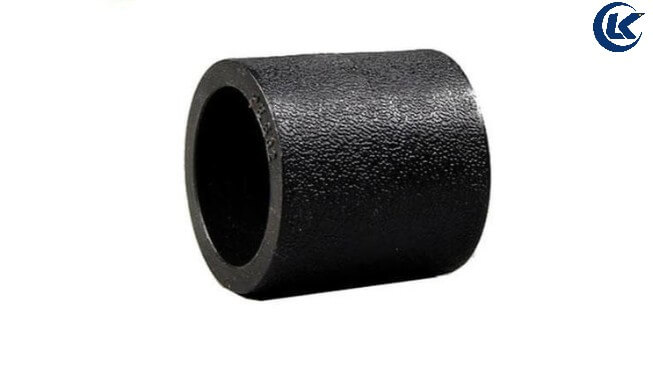

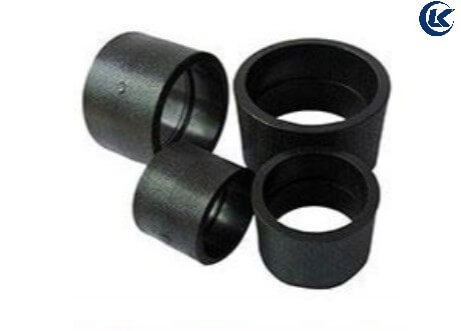

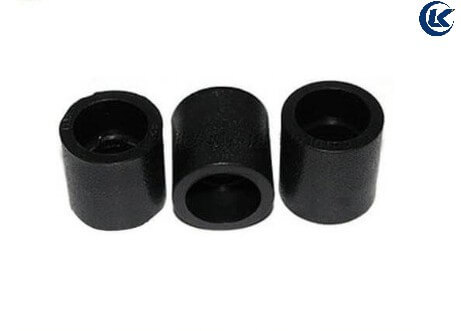

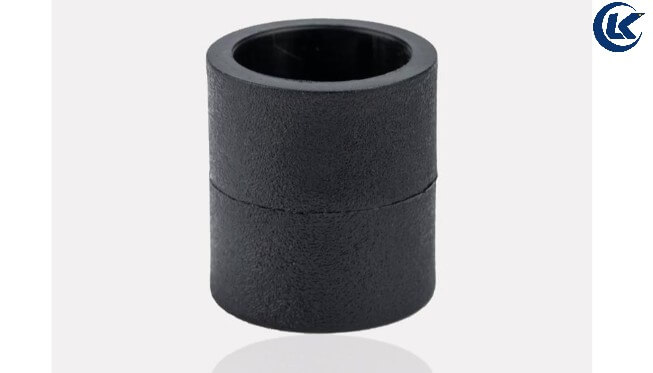

What Is an HDPE Butt Fusion Coupling?
An HDPE coupling is a pipe fitting designed to join two sections of HDPE pipe.
Unlike an electrofusion coupling, which contains integrated electrical heating elements, a butt fusion connection uses a compatible heating and fusion process to join the pipe/fitting surfaces.
For larger-diameter HDPE piping systems, butt fusion is widely used because it can create a strong, permanent connection without the need for threaded or mechanical joints.
The exact fusion procedure should follow the requirements of the pipe and fitting manufacturer and the applicable butt fusion standard.
HDPE Butt Fusion Coupling Features
-
1. PE80 and PE100 Material
Our HDPE butt fusion couplings can be manufactured from new PE80 or PE100 raw materials according to the required pressure class and application.
PE100 is commonly selected for pressure piping systems because of its high strength-to-density ratio and suitability for high-performance polyethylene pipelines.
-
2. High Joint Strength
Butt fusion creates a fused connection between compatible polyethylene components.
When the correct heating temperature, pressure, alignment and cooling procedure are followed, the joint can provide excellent mechanical integrity and leak resistance.
-
3. Excellent Corrosion Resistance
HDPE is resistant to many chemical substances and does not rust or corrode like conventional metal piping materials.
This makes HDPE fittings suitable for many water, irrigation, wastewater and industrial applications.
Actual chemical compatibility should be confirmed according to the conveyed medium and operating conditions.
-
4. High Flexibility
HDPE piping systems have good flexibility and can accommodate certain ground movement and uneven settlement.
This makes HDPE particularly useful for buried pipelines and infrastructure projects where ground conditions may vary.
-
5. Excellent Wear Resistance
HDPE has good abrasion and wear resistance, making it suitable for selected applications involving abrasive fluids or suspended solids.
For mining and slurry applications, material selection and wall thickness should be determined according to the specific operating conditions.
-
6. Low Flow Resistance
The relatively smooth internal surface of HDPE pipes can help reduce friction losses and support efficient fluid transportation.
The actual hydraulic performance depends on pipe diameter, flow rate, temperature, internal surface condition and system design.
-
7. Lightweight Construction
HDPE fittings are considerably lighter than many comparable metal fittings, making them easier to transport and handle during installation.
This can be particularly beneficial for large-diameter pipeline projects.
-
8. Long Service Life
HDPE piping systems can provide a long service life when properly designed, manufactured, installed and operated.
Actual service life depends on pressure, temperature, fluid characteristics, installation conditions and other factors.
-
9. Easy Pipeline Installation
HDPE butt fusion technology eliminates the need for threaded connections and many mechanical joining components.
With suitable fusion equipment and trained operators, large-diameter HDPE pipelines can be installed efficiently.
Butt Fusion Installation Process
-
The general HDPE butt fusion process includes the following steps:
-
Step 1 — Pipe Preparation
Inspect and clean the pipe and fitting surfaces before fusion.
-
Step 2 — Alignment
Place the HDPE pipe and coupling in the butt fusion machine and align the components correctly.
-
Step 3 — Facing
Face the pipe ends to remove surface irregularities and create clean, parallel fusion surfaces.
-
Step 4 — Heating
Place the heating plate between the prepared surfaces and apply the specified pressure until the polyethylene surfaces reach the required fusion condition.
-
Step 5 — Joining
Remove the heating plate and bring the prepared surfaces together under the specified fusion pressure.
-
Step 6 — Cooling
Maintain the required alignment and pressure during the cooling period.
-
Step 7 — Inspection
After cooling, inspect the fusion bead and joint condition before placing the pipeline into service.
Important: Actual fusion parameters should be determined according to the pipe/fitting material, SDR, diameter, fusion equipment and applicable installation standard.
HDPE Coupling Applications
-
Municipal Water Supply
HDPE butt fusion couplings can be used for municipal water transmission and distribution pipelines.
The fused joint provides a permanent connection without conventional threaded joints.
-
Irrigation Systems
HDPE couplings are suitable for agricultural irrigation, commercial irrigation and water transportation systems.
Their lightweight construction and corrosion resistance make them convenient for many irrigation projects.
-
Drainage and Wastewater
HDPE fittings can be used in compatible drainage and wastewater systems where corrosion resistance and reliable joints are required.
-
Industrial Water Piping
HDPE butt fusion couplings can connect HDPE pipes used for industrial water transportation and process water systems.
-
Mining Applications
HDPE piping systems are used in selected mining and slurry applications because of their flexibility and wear resistance.
The pipe SDR, material grade and fitting specification should be selected according to the specific mining conditions.
Material Options
PE80
PE80 is suitable for a variety of polyethylene piping applications and can be supplied according to the required pressure class and applicable standard.
PE100
PE100 offers higher material strength and is widely used for modern pressure HDPE piping systems.
For pressure applications, the appropriate material grade and SDR should be selected according to the project design.
Standards
Our HDPE butt fusion couplings can be supplied according to applicable international standards, including:
- ✅ISO 4427
- ✅AS/NZS 4130
- ✅BS EN 12201
- ✅SABS
The exact standard and dimensions should be confirmed according to the required market and application.
Please send your request to the email address:sales@mfgpipe.com (We will respond to you within 24 hours).
Injection Moulded HDPE Coupling
The coupling is manufactured using an injection moulding process, allowing consistent dimensions and repeatable production for regular-size fittings.
Injection moulded HDPE fittings can provide:
- ✅Consistent dimensions
- ✅Uniform wall structure
- ✅Reliable fusion surfaces
- ✅Repeatable production quality
- ✅Suitable performance for pressure piping applications
- ✅Efficient production of regular sizes
For customized or special-size fittings, production requirements should be confirmed with our technical team.
Stock & Delivery
Selected regular-size HDPE butt fusion couplings can be kept in stock for faster delivery.
Our stated production capacity is:
Up to 3 × 40 ft containers per week
Actual stock availability, production schedule and delivery time depend on size, quantity, material, SDR and customization requirements.
For urgent projects, please contact us with the required sizes and quantities so we can confirm current availability.
Customized HDPE Couplings
Henan Lukuang Industry Co., Ltd. can provide customized HDPE coupling solutions according to project requirements.
Customization may include:
- ✅Pipe diameter
- ✅SDR
- ✅Pressure rating
- ✅PE80 / PE100 material
- ✅Color
- ✅Product marking
- ✅Packaging
- ✅Special dimensions
- ✅Project-specific requirements
For customized orders, please send your pipe OD, SDR, pressure rating, required standard and quantity.
Why Choose Henan Lukuang Industry Co., Ltd.?
Henan Lukuang Industry Co., Ltd. supplies HDPE pipes and fittings for water supply, irrigation, drainage and industrial pipeline projects.
For HDPE butt fusion couplings, we can provide:
- ✅PE80 and PE100 options
- ✅Injection moulded fittings
- ✅DN75–DN630 mm range
- ✅Multiple SDR configurations
- ✅ISO / AS/NZS / BS EN / SABS options
- ✅Regular-size stock
- ✅Customized products
- ✅Samples
- ✅Bulk project supply
- ✅Professional technical support
- ✅International export service
FAQ
What is an HDPE butt fusion coupling?
An HDPE butt fusion coupling is a polyethylene fitting used to connect compatible HDPE pipes through a controlled butt fusion process.
Is an HDPE coupling the same as an electrofusion coupling?
No. An electrofusion coupling uses integrated electrical heating elements to fuse the pipe and fitting. A butt fusion connection uses a suitable heating tool and controlled fusion pressure.
What sizes are available?
Our standard range covers DN75–DN630 mm, with customized sizes available according to project requirements.
What materials are available?
The couplings can be supplied in PE80 or PE100 raw materials according to the required specification.
What SDR ratings are available?
Available configurations include:
SDR11, SDR13.6, SDR17, SDR21, SDR26, SDR33 and SDR41.
What standards can the couplings follow?
Products can be supplied according to applicable:
ISO 4427, AS/NZS 4130, BS EN 12201 and SABS requirements.
Can you provide samples?
Yes. Samples are available for product evaluation and specification confirmation.
Do you have stock?
Selected regular sizes can be stocked for prompt delivery. Please contact us with your required sizes and quantity for current availability.
Can you supply other HDPE fittings?

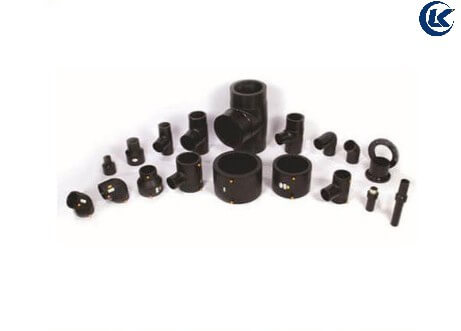

Yes. Henan Lukuang Industry Co., Ltd. can supply a range of HDPE fittings, including couplings, elbows, tees, reducers, flange adaptors and other compatible fittings according to the project requirements.
