HDPE Electrofusion Coupling

PE100 Electrofusion Coupler for Reliable HDPE Pipe Connections

HDPE Electrofusion Coupling is designed to join two HDPE pipes of the same outside diameter in a straight pipeline. It is widely used in water supply, gas distribution, irrigation, industrial, mining and municipal pipeline systems.

WhatsApp: 8615515833787 WeChat: 15515833787
Send Email Get A Quote

Core Parameters

  • Size – DN25-500 mm (can be customized).

    Pressure rating : SDR11-PN16 bar, SDR13.6-PN12.5 bar, SDR17-PN10 bar, SDR21-PN6 bar, SDR26-PN6 bar.

    Raw materials:PE80 or PE100 materials.

    Supply capacity: 3 × 40 feet per week container.

    Certificate:ISO 14001, ISO 9001, OHSAS 18001, CE BS EN 12001 certification.

    Each coupling contains embedded resistance heating coils. When connected to a compatible electrofusion control unit, the coils generate heat and fuse the inside surface of the coupling with the outside surface of the HDPE pipe. After the required cooling time, the joint forms a durable, leak-tight and corrosion-resistant connection.


    Manufactured from high-quality PE80 or PE100 material, our HDPE electrofusion couplings are available in a wide range of sizes. Customized dimensions, colour, barcode labels, packaging and OEM branding are available on request.

    Factory pricing. Global compliance. Ready to supply. Get your quote.

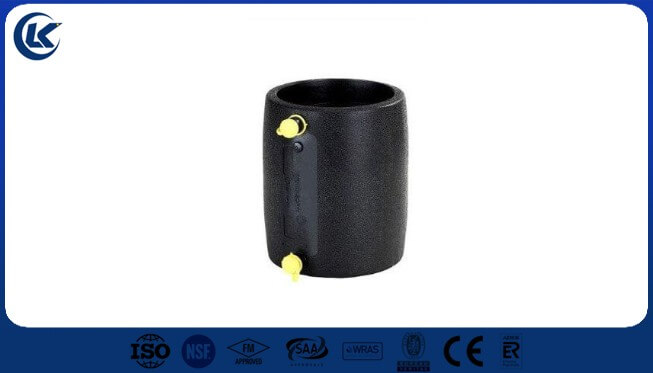

    1-1

  • An HDPE electrofusion coupling is a socket-type fitting used to connect two polyethylene pipes of the same nominal outside diameter. It is especially suitable for pipeline repair, tie-in work, confined installation areas and buried pipe systems where butt fusion equipment may be difficult to use.


    The fitting is installed by preparing the pipe surface, inserting both pipe ends to the specified depth, securing the assembly with alignment clamps and applying the fusion parameters specified on the fitting label or barcode. The internal heating coils melt the contacting PE surfaces and create a homogeneous fusion joint after cooling.


    Electrofusion coupling provides a practical connection solution for HDPE pipe systems requiring reliability, corrosion resistance and long-term service performance.

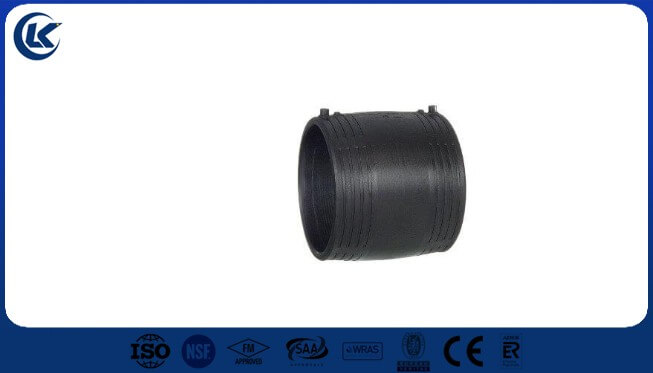

    1-2

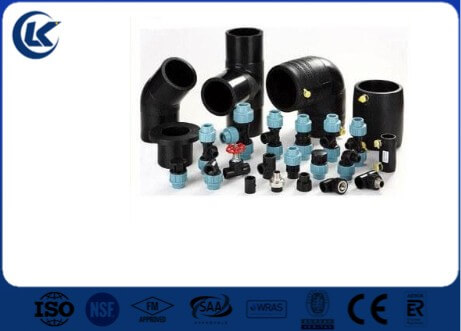

  • 1-3

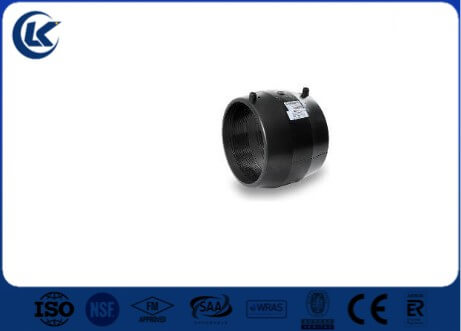

  • 1-4

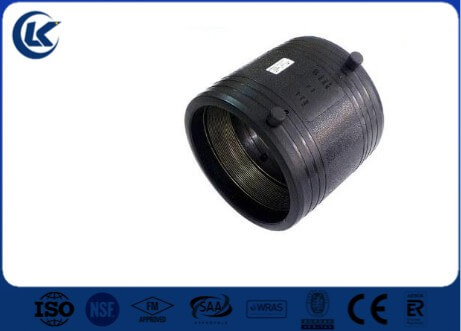

  • 1-5



Product Features

    • ✅Joins HDPE pipes of the same diameter in a straight line
    • ✅Electrofusion socket connection for secure pipe installation
    • ✅PE80 or PE100 raw material available
    • ✅Embedded resistance heating coils
    • ✅Strong and leak-tight joint when installed correctly
    • ✅Corrosion resistant for underground and harsh environments
    • ✅Smooth internal bore to support efficient fluid flow
    • ✅Suitable for water, gas, irrigation and industrial applications
    • ✅Black is standard; yellow is available for gas applications on request
    • ✅Barcode and traceability marking available on request
    • ✅Custom size, label and export packaging options available

Please send your request to the email address:sales@mfgpipe.com (We will respond to you within 24 hours).

Technical Specifications

Item Specification
Product name HDPE Electrofusion Coupling
Connection type Electrofusion socket × socket
Standard size range DN/OD 25–400 mm
Larger sizes Available on request
Material PE80 or PE100
Standard colour Black
Optional colour Yellow or customized colour
SDR options SDR11, SDR13.6, SDR17, SDR21 and SDR26, subject to product configuration
Pressure rating Depends on fitting SDR, connected pipe SDR, medium, operating temperature and local regulations
Water application standards ISO 4427 / EN 12201, where applicable
Gas application standards ISO 4437 / EN 1555, where applicable
Additional standards AS/NZS 4129 and other standards available subject to project requirements
Traceability Barcode, batch number and product label available on request
Sample Available on request
Packaging Standard export packaging or customized packaging

D D1 L L1
25 38 82 40
32 47 84 40
40 56 88 42
50 65 99 48
63 87 117 57
75 97 133 65
90 115 142 70
110 139 151 75
125 155 151 75
140 169 167 82
160 201 192 95
180 215 209 104
200 248 224 110
225 278 240 118
250 308 260 129
315 388 305 150
355 438 320 157
400 494 330 167

Note: Special specifications are available upon request. Please contact us for further product information and pricing.

Please send your request to the email address:sales@mfgpipe.com (We will respond to you within 24 hours).

Applications

HDPE Electrofusion Couplings are suitable for:

  • ✅Drinking water and municipal water supply systems
  • ✅Natural gas distribution pipelines
  • ✅Agricultural irrigation networks
  • ✅Industrial process-water pipelines
  • ✅Mining and slurry pipeline systems
  • ✅Underground utility pipelines
  • ✅HDPE pipe repair and maintenance projects
  • ✅Pipeline extension and connection projects



Installation Guidelines

  • For a reliable electrofusion joint, installation should be carried out by trained personnel using suitable electrofusion equipment.

    1. 1. Cut the HDPE pipe square and remove burrs.
    2. 2. Mark the insertion depth on both pipe ends.
    3. 3. Scrape the oxidation layer from the fusion area using a suitable scraper.
    4. 4. Clean and dry the prepared pipe surfaces with approved cleaning materials.
    5. 5. Insert the pipes fully into both ends of the coupling.
    6. 6. Use alignment clamps to prevent pipe movement during fusion and cooling.
    7. 7. Connect the electrofusion terminals to a compatible control unit.
    8. 8. Scan the barcode or enter the fusion parameters specified on the fitting.
    9. 9. Allow the joint to cool completely before removing clamps or applying pressure.



Why Choose Our HDPE Electrofusion Coupling?



  • ✅High-quality PE80 and PE100 raw material options
  • ✅Stable dimensions and reliable fusion performance
  • ✅Multiple standard sizes for different pipe projects
  • ✅Compatible with water, gas and industrial PE pipeline systems
  • ✅Flexible OEM, label and packaging services
  • ✅Export-ready packing and responsive quotation support
  • ✅Related electrofusion fittings available, including reducers, elbows, tees, end caps, valves and flange adaptors



Frequently Asked Questions



What is an HDPE electrofusion coupling?

It is a fitting used to connect two HDPE pipes of the same diameter through an electrofusion welding process.



What equipment is required for installation?

A compatible electrofusion control unit, pipe cutter, scraper, cleaning materials and alignment clamps are required.



Can electrofusion couplings be used for gas pipelines?

Yes, provided the selected fitting meets the required material grade, SDR, pressure rating and gas-pipeline standards for the project.



What material is available?

PE80 and PE100 material options are available. PE100 is commonly selected for applications with defined pressure and standard requirements.



Can you provide customized products?

Yes. Please send your pipe diameter, SDR, pressure, application, required standard, quantity and destination port.



Request a Quote



Please provide the following information for an accurate quotation:

  • ✅Required coupling size
  • ✅Pipe SDR and wall thickness
  • ✅Application: water, gas, irrigation or industrial
  • ✅Required material: PE80 or PE100
  • ✅Working pressure and applicable standard
  • ✅Quantity and destination port
  • ✅Colour, barcode, label and packaging requirements

Contact us today for drawings, samples, technical information and pricing.

Please send your request to the email address:sales@mfgpipe.com (We will respond to you within 24 hours).
