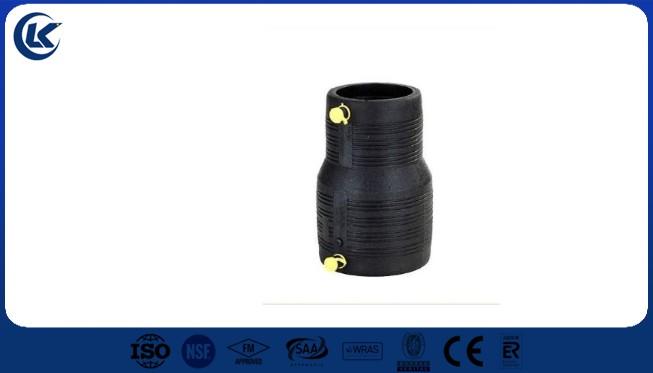

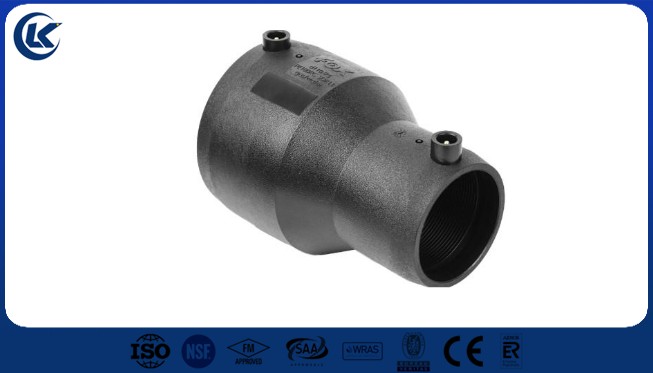

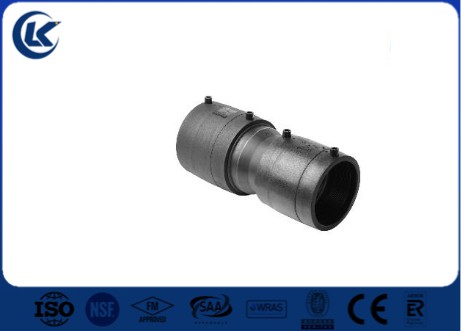

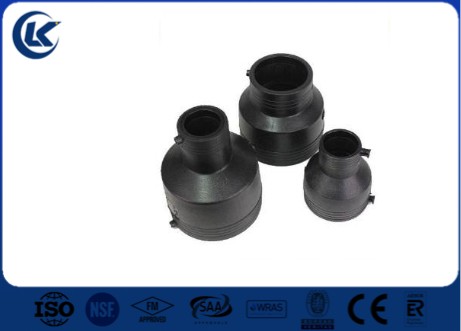

HDPE Electrofusion Reducer Coupling

Core Parameters

• Size – DN25-500 mm (can be customized).

  Pressure rating : DR11-PN16 bar, SDR13.6-PN12.5 bar, SDR17-PN10 bar, SDR21-PN6 bar, SDR26-PN6 bar.

  Raw materials:PE80 or PE100 materials.

  Supply capacity: 3 × 40 feet per week container.

  Certificate:ISO 14001, ISO 9001, OHSAS 18001, CE BS EN  12001 certification.

  The fitting contains embedded resistance heating coils. When connected to a compatible electrofusion control unit, the coils generate heat and fuse the fitting socket and pipe surface together. After cooling, the joint forms a strong, leak-tight and corrosion-resistant connection.Manufactured from high-quality PE80 or PE100 raw material, our electrofusion reducing couplings are available in a wide range of diameter combinations. Custom sizes, colours, labels and packaging are available on request.

  Factory pricing. Global compliance. Ready to supply. Get your quote.



• An electrofusion reducing coupling is a PE fitting with two socket ends of different diameters. It is used when a pipeline needs to transition from a larger HDPE pipe to a smaller HDPE pipe, or vice versa.

  During installation, the outer surface of each pipe is scraped, cleaned and inserted into the fitting to the required insertion depth. The electrofusion machine then supplies the specified fusion energy through the fitting terminals. The embedded heating coils melt the contacting PE surfaces and create a homogeneous joint after the required cooling period.

  Compared with mechanical joints, electrofusion connections do not require threaded components or elastomeric seals in the fusion zone. This makes the product particularly suitable for applications requiring long-term reliability, corrosion resistance and secure underground pipe connections.



Product Features

• ✅Connects HDPE pipes of different diameters in a straight line
• ✅Electrofusion socket connection on both ends
• ✅High-quality PE80 or PE100 material available
• ✅Embedded heating coils for controlled fusion
• ✅Leak-tight joint when installed correctly
• ✅Corrosion resistant and suitable for buried installation
• ✅Barcode and traceability marking available on request
• ✅Suitable for water, gas, irrigation and industrial applications
• ✅Black is standard; yellow is available for gas applications on request
• ✅Custom dimensions, branding and packaging available

Please send your request to the email address:sales@mfgpipe.com (We will respond to you within 24 hours).

Technical Specifications

HDPE Pipe Specification Parameter Comparison Table

Applications

✅HDPE Electrofusion Reducing Couplings are commonly used in:

✅Potable water supply networks

✅Municipal water distribution systems

✅Natural gas distribution systems

✅Irrigation and agricultural pipelines

✅Industrial fluid transfer systems

✅Mining slurry and process-water systems

✅Oil and chemical pipeline projects, subject to medium compatibility

✅Pipeline repair, extension and diameter-transition projects

Installation Guidelines

• For a reliable electrofusion joint, installation should be performed by trained personnel using compatible electrofusion equipment.

  1. 1. Cut the pipe square and remove burrs.
  2. 2. Mark the required insertion depth on both pipe ends.
  3. 3. Scrape the oxidation layer from the fusion area using a suitable rotary or peeling scraper.
  4. 4. Clean the scraped area with approved cleaning materials and allow it to dry.
  5. 5. Insert both pipes fully into the reducing coupling.
  6. 6. Use alignment clamps to prevent movement during fusion and cooling.
  7. 7. Connect the electrofusion terminals to the control unit.
  8. 8. Scan the barcode or enter the specified fusion parameters according to the fitting label.
  9. 9. Keep the assembly fixed throughout the fusion and cooling process.
  10. 10. Do not pressure-test or move the joint until the required cooling time has elapsed.

Why Choose Our HDPE Electrofusion Reducing Coupling?

• ✅Stable quality raw materials and controlled production
• ✅Multiple diameter combinations for pipeline transition requirements
• ✅Smooth internal flow transition
• ✅Strong resistance to corrosion and chemical media
• ✅Suitable for underground and harsh operating environments
• ✅Export-ready packaging and flexible OEM service
• ✅Technical support for product selection and project requirements

Frequently Asked Questions

What is an electrofusion reducing coupling used for?

It is used to connect two HDPE pipes with different outside diameters in a straight pipeline.

Can it be used for gas pipelines?

Yes, gas-use fittings can be supplied subject to the required material grade, SDR, pressure rating and applicable gas-pipeline standards.

Is PE100 better than PE80?

PE100 generally offers a higher minimum required strength classification than PE80. The correct material should be selected according to the project specification, pressure class and local standard.

Does the fitting include fusion parameters?

Barcode, label and traceability information can be supplied according to product configuration and customer requirements.

Can you provide customized sizes?

Yes. Please provide the pipe outside diameter, SDR, application, working pressure, required standard and quantity.

Request a Quote

To receive a quotation, please send us:

• ✅Required size combination, such as 110 × 63 mm
• ✅Material requirement: PE80 or PE100
• ✅SDR and working pressure
• ✅Application: water, gas, irrigation or industrial use
• ✅Required standard and certification
• ✅Quantity and destination port
• ✅Colour, label and packaging requirements

Contact us today for product drawings, samples, technical details and quotation support.

Please send your request to the email address:sales@mfgpipe.com (We will respond to you within 24 hours).
